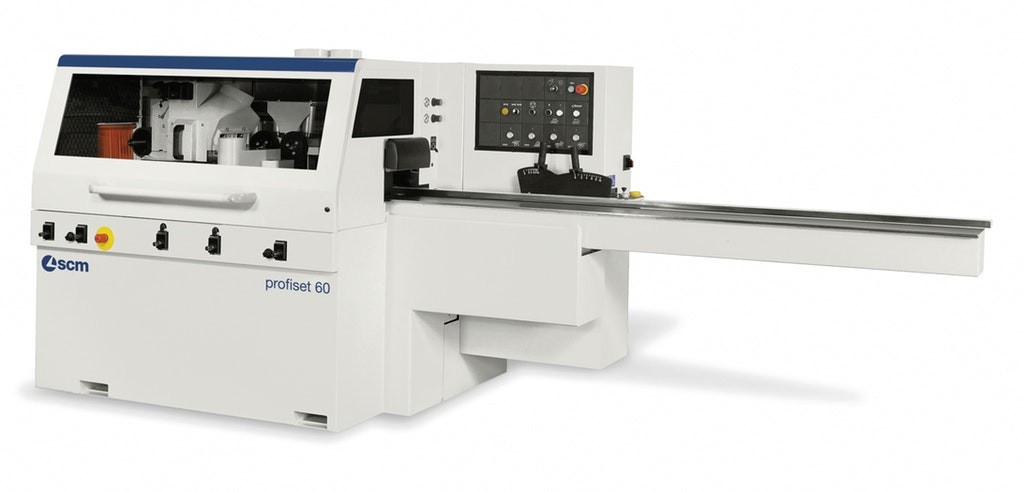

SCM PROFISET 60 Automatic Four Sided Planer Composition 4

Use the form below or call us on 0116 2861617

Your title

Your name *

Company

Telephone *

Email *

Your Enquiry *

Submit Enquiry

Product Features

Min/max working width (finished section) mm 25 Min/max working height (finished section) mm 6/120
Feed speed m/min 5÷25
Minimum length of single component mm 635 Spindles diameter mm 40
Min/max cutterheads diam. planer group mm 120÷140
Min/max cutterheads diam.
vertical spindles length mm 100÷180
Min/max cutterheads diam.on top horizontal spindle mm 125
Min/max cutterheads diam. on bottom horizontal spindle mm 100÷180
Min/max cutterheads diam. universal spindle mm 100÷180 Vertical spindles length mm 140
Horizontal spindles length mm 250
Feed rollers diameter mm 120
Infeed table length mm 2000
Rapid adjustment of infeed table and fence mm 10
Manual pump for table lubrication STD
Manual centralised lubrication STD
Standard motor powers listed as follows:
Feed motor power 3kw (4hp)

COMPOSITION 4 with

Pneumatic Pressures
Top Feed Unit before 1st Head
Motors 7.5HP / 15HP / 10HP
Braking to motors
Kit for Profiling on Top Head
Second Flanged Feed Roller
Kit of supplementary Flanged Feed Rollers in front of left vertical head
Kit for working width 25 to 15mm
4 x 4 knife TERSA Planing Blocks

Ce safety regulations
