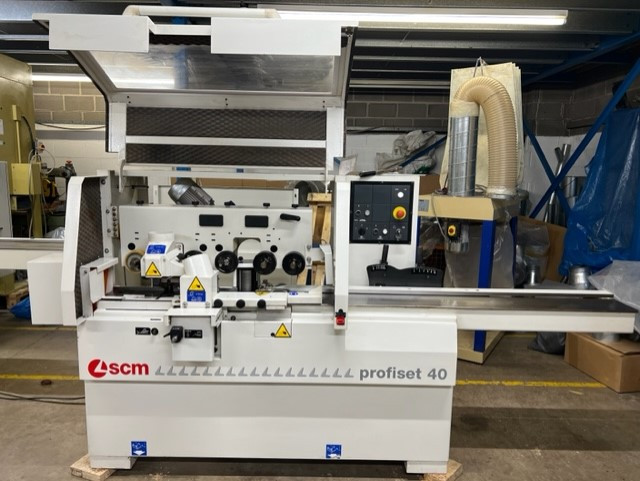

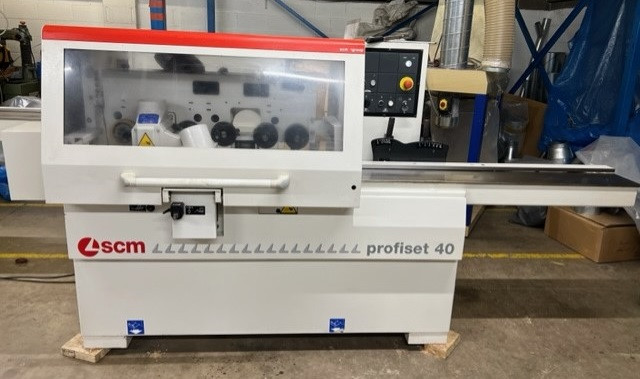

SCM Used PROFISET 40 Four Sided Planer

Product Features

YEAR 2012 Ce Specification

Min./max. working width (finished sect) mm 3/180
Min./max. working height (finished sect) mm 6/105
Feed speed m/min 6 - 12
Spindles speed rpm 6000
Min. working width (finished section) 23mm
Max. working width (finished section) 180mm
Min. working height (finished section) 6mm
Max. working height (finished section) 105mm
Min. length of single work piece 300mm
Feed speed 6 - 12 m/min
Feed motor power 0,7/1,1 kW (1/1,5 Hp)
Horizontal spindles motor power (single) 7,5 kW 10Hp)
Vertical spindles motor power (single) 7,5 kW (10 Hp)
Spindle speed 6000 rpm
Spindles diameter 35mm
Vertical spindles length 120mm
Horizontal spindles length 190mm
Min/max cutter heads diam. on horiz.spindles 100mm Min/max cutter heads diam. on vert spindles 100 - 120mm
Profiling cap. without axial stroke on vertical spindles 10mm
Groups adjustment with respect to the diameter of cutters heads +/- 1mm
Feed rollers diameter 120mm

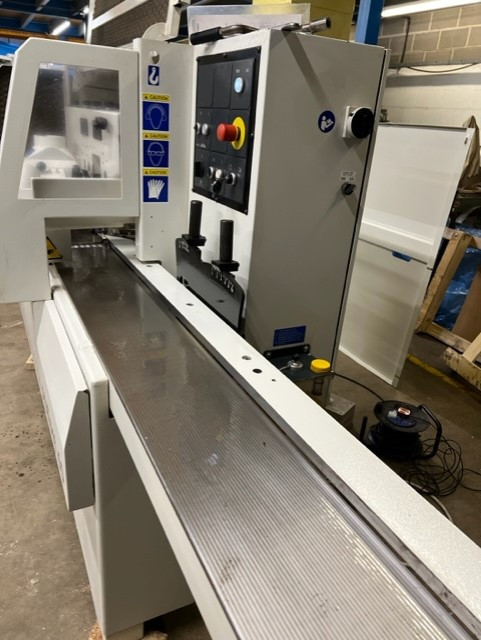

Infeed worktable length 1700mm
Fast adjustment of infeed table and fence 10mm

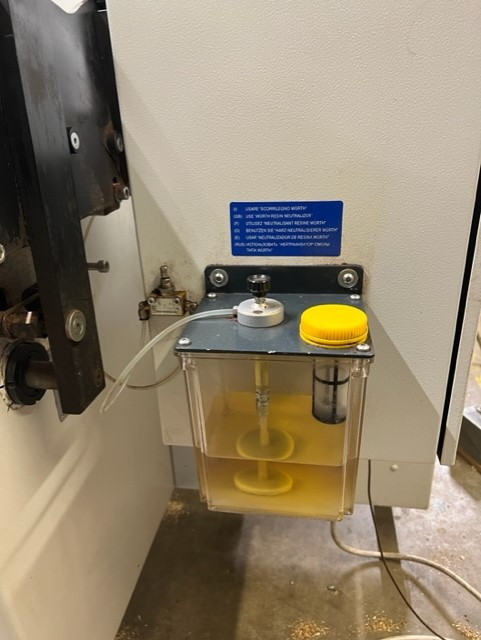

Manual pump for table lubrication STD
Feed Unit in front of 1st Bottom

4 x Tersa Planing Blocks
Exhaust outlets diameter no. 4@ 120mm
Equipment in conformity with CE Standards STD
Maximum efficiency with minimum overall dimensions.

Requires 33amps per phase power.
