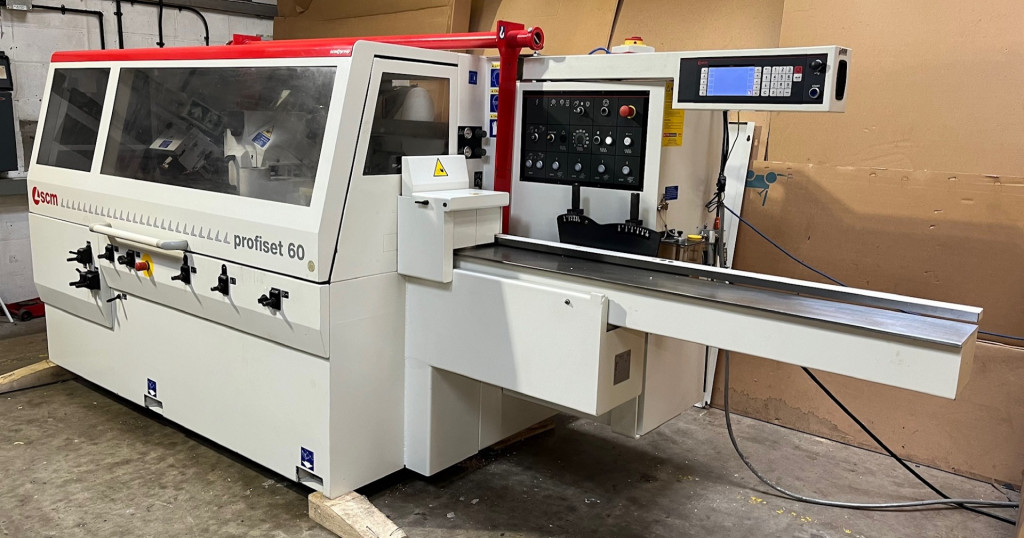

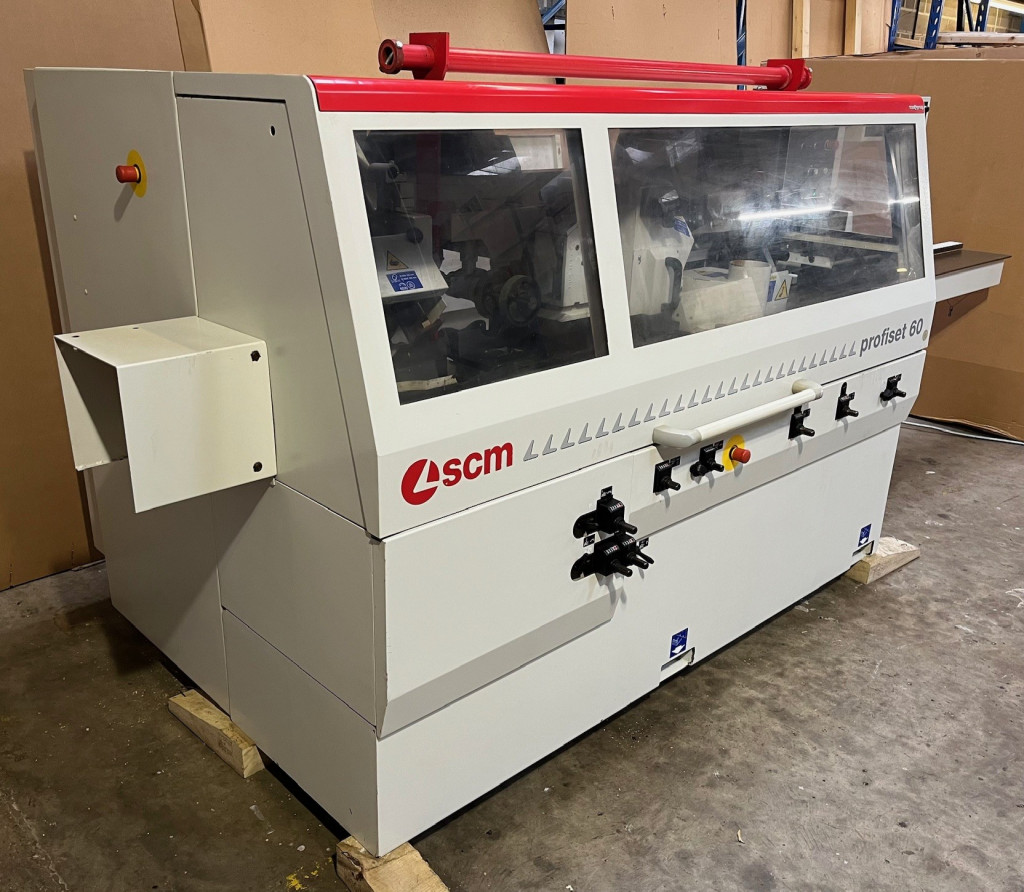

SCM USED PROFISET 60EP 5 Head + Universal Throughfeed Moulder

Product Features

Year 2013 Ce Specification

Min/max working width (finished section) mm 25 Min/max working height (finished section) mm 6/120
Feed speed m/min 5÷25
Minimum length of single component mm 635 Spindles diameter mm 40
Min/max cutterheads diam. planer group mm 120÷140
Min/max cutterheads diam.
vertical spindles length mm 100÷180
Min/max cutterheads diam.on top horizontal spindle mm 125
Min/max cutterheads diam. on bottom horizontal spindle mm 100÷180
Min/max cutterheads diam. universal spindle mm 100÷180 Vertical spindles length mm 140
Horizontal spindles length mm 250
Feed rollers diameter mm 120
Infeed table length mm 2000
Rapid adjustment of infeed table and fence mm 10

50.02.40    EUROPEAN SAFETY REGUALTIONS CE NORMS

04.22.21    PROFISET 60 EP - AUTOMATIC THROUGHFEED PLANER MOULDER - COMP 5

93.07.31    VOLT 400 EU

93.12.01    FREQUENCY 50 HZ

97.00.12    AUTOM. STAR-DELTA STARTER 4/5,5KW (OP. NT/NTE)

11.12.23    MOT.PLAN 5.5KW VR.11KW VL.11KW HT. 5.5KW HB.5.5KW

11.12.28    INCREASED MOTOR POWER FOR UNIVERSAL SPINDLE

27.12.54    BRAKES FOR 4 MOTORS (COMP. 5) (HEAD UN. NT/NTE)

27.12.49    BRAKE FOR UNIVERSAL SPINDLE

90.10.48    KIT FOR PORFILING WITH TOP SPINDLE (OP. NT/NTE)

32.14.00    2ND FLANGED FEED ROLLER OPP.LEFT VERT SP (PN/NT/E)

23.15.84    TANDEM FEED UNIY BEFORE UNIVERSAL SPINDLE WITH RAPID EXCLUSION

32.14.04    KIT FL. FEED ROLL IN FRONT LEFT VERT SP (PN/NT/E)

88.06.34    SUPPLEMENTARY WORKABLE TABLE REXILON INSERTS-COMP. 5

19.14.28    KIT F MIN WORKING WIDTH FROM 25 TO 15MM (PN/NT/E)

90.10.33    UNIVERSAL SPINDLE

31.13.17    FRONT AND REAR PRESSURE SHOE ON UNIVERSAL SPINDLE HOOD.

FURTHER DETAILS ON REQUEST
