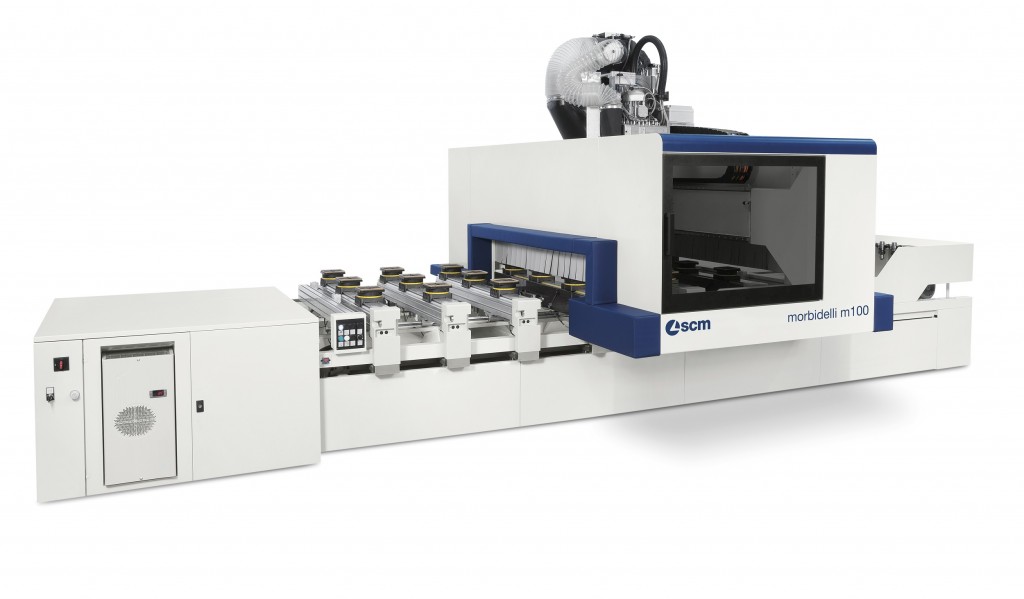

SCM NEW MORBIDELLI M100 CNC Machining Centres for drilling and routing

Product Features

This highly modular machining centre provides answers to all the problems associated with woodworking and with advanced materials processing.
Just a few clicks to design and manufacture pieces of any shape, the machine is run by the Suite Maestro which has specific modules for every production cycle.
Unique on the market in having an unrivalled price-performance ratio, it can be configured according to the customer’s needs and investment plan.

FREEDOM AT 360°:
ALL FREEDOM
Optimizing the space within your factory thanks to the ProSpace solution.
Maximum ergonomic load, the absence of perimetral protections allow the access to the work table from all sides of the machine.

FASTER THAN ANYONE ELSE:
ALL FASTER

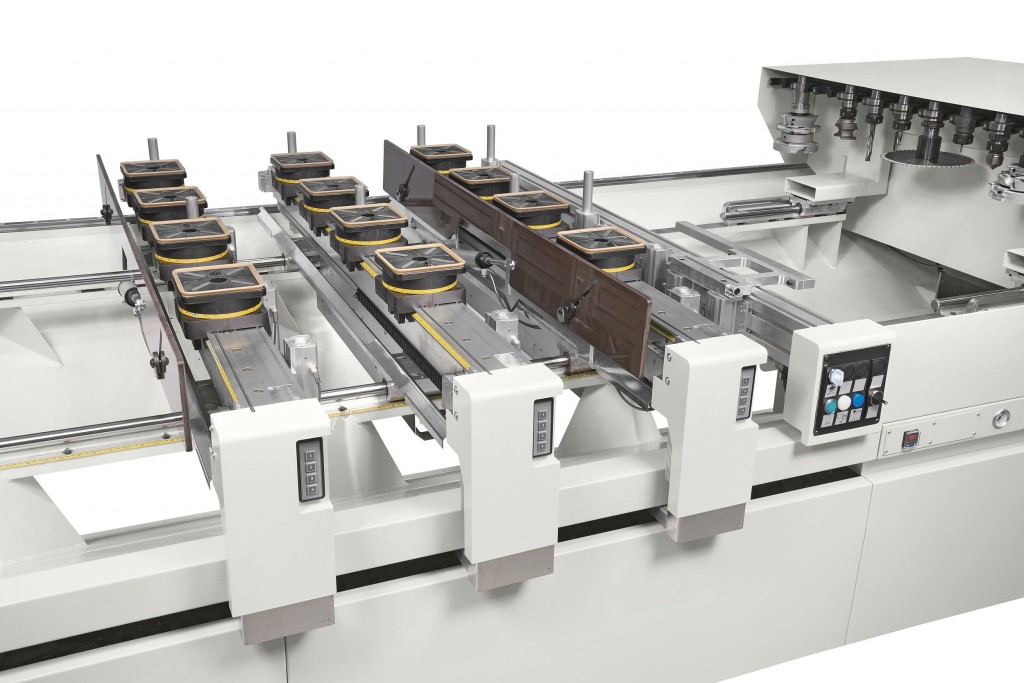

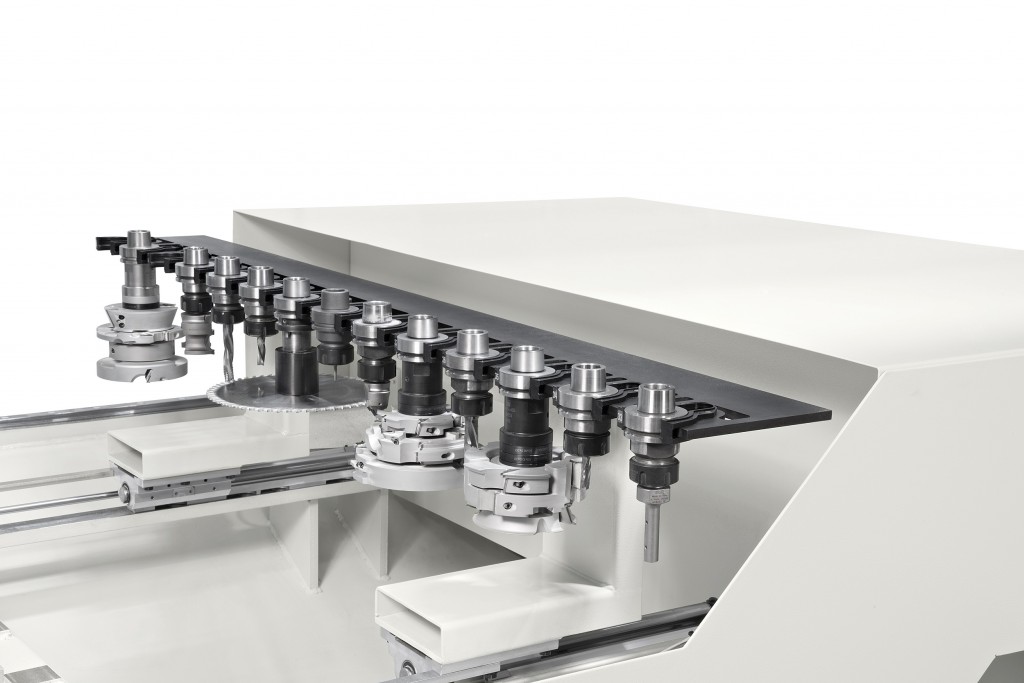

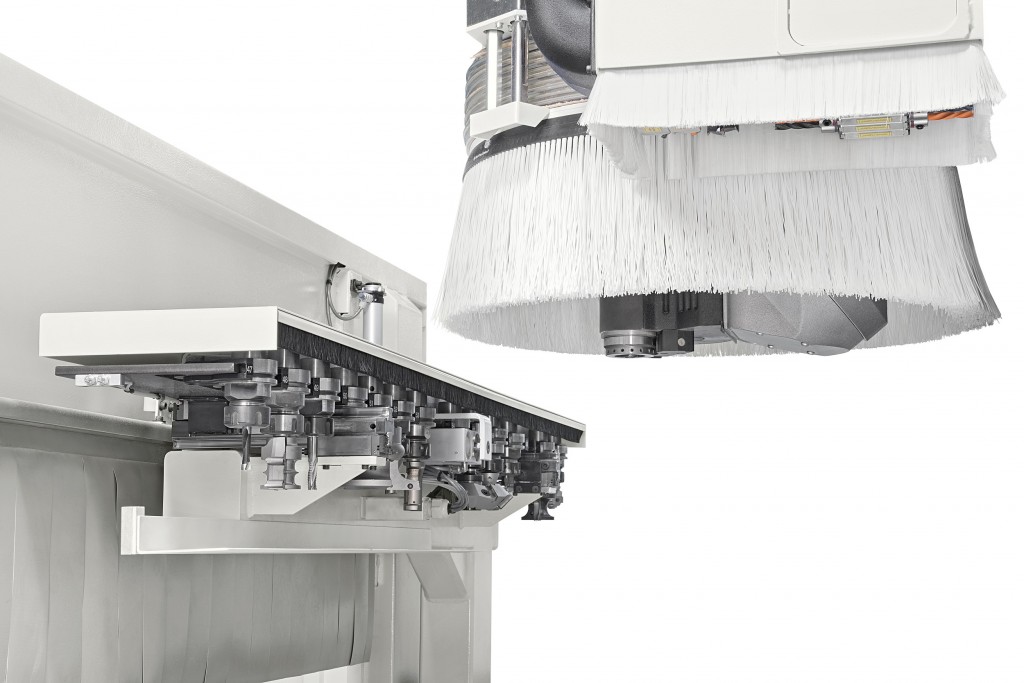

60% time saving in drilling cycles thanks to the rapid working/cycle time and devices that reduce the idle times, no downtimes for setup operations with the TV FLEXMATIC work table, and less than 15” for the tool change with the FAST14 tool changer.

ENDLESS MACHINING TYPES:
ALL FLEXIBLE
The machine can cope with all types of materials: from wood to plastic, from panel to the single element, from a kitchen door to a window, the configured solution for all your needs and your investment plan.
The unit can accommodate up to four machining units, including a device for inserting dowels using pearl glue.

Vectorial speed X-Y axes m/min 56 (ProSpace) 78 (ProSpeed)
Z axis panel passage mm 180

Routing unit
Motor power (max.) kW (hp) 15 (20,5)
Rotation speed (max.) rpm 24000
Available tools on tool changer (max.) places 44

Drilling unit
Independent vertical spindles (max.) n.21
Independent horizontal spindles (max.) n.12
Rotation speed (max.) rpm 8000

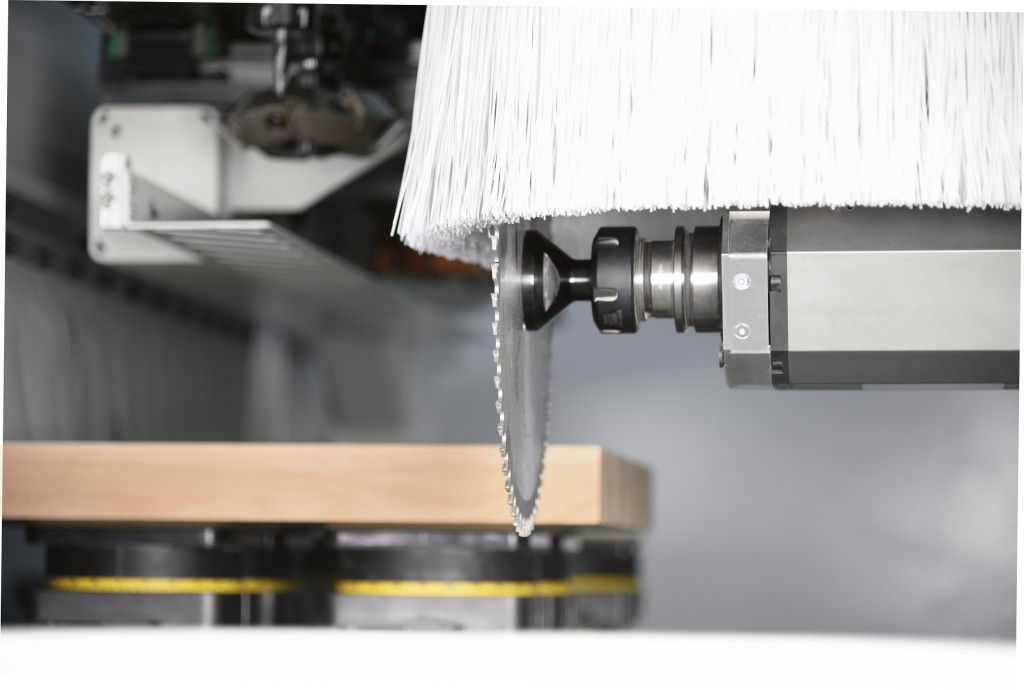

Integrated blade in X, diameter mm 125

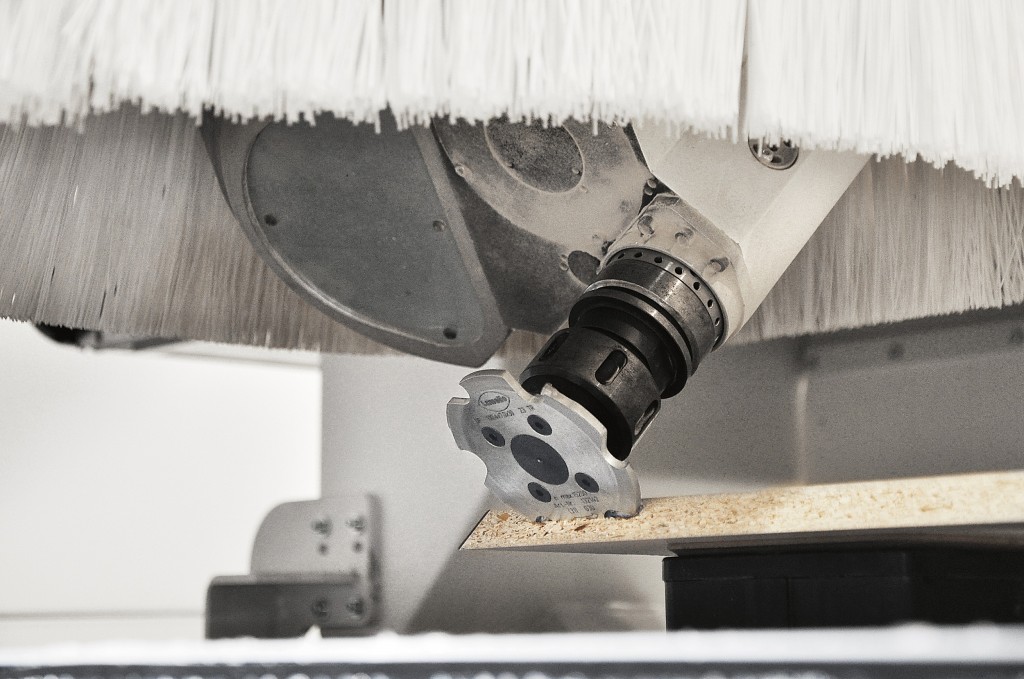

0-90° blade unit
Motor power (max.) kW (hp) 2,2 (3)
Rotation speed (max.) rpm 6000
Auxiliary routing unit
Motor power (max.) kW (hp) 4,5 (6)
Rotation speed (max.) rpm 18000

Full Specifications and Prices quoted on request.
