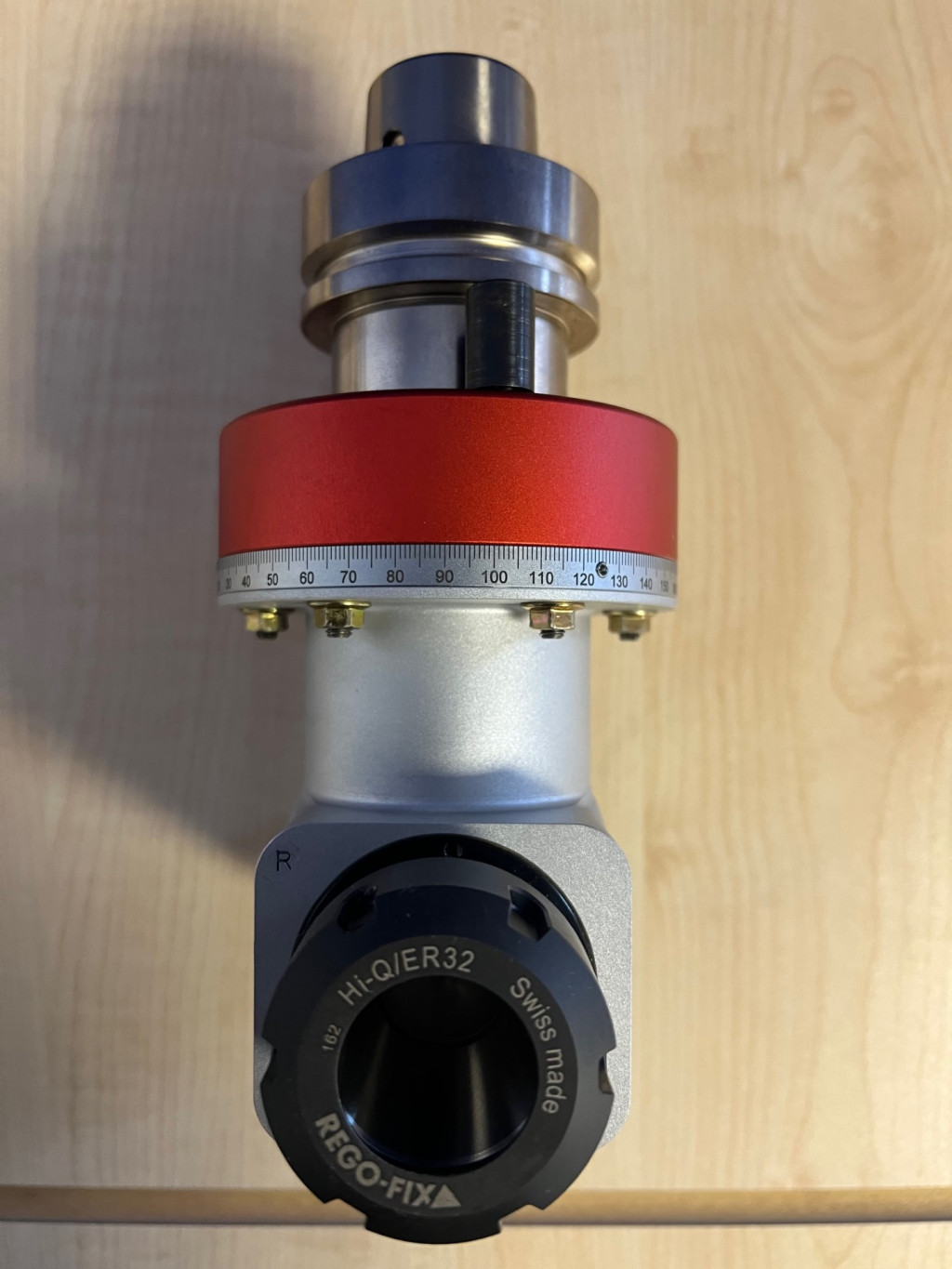

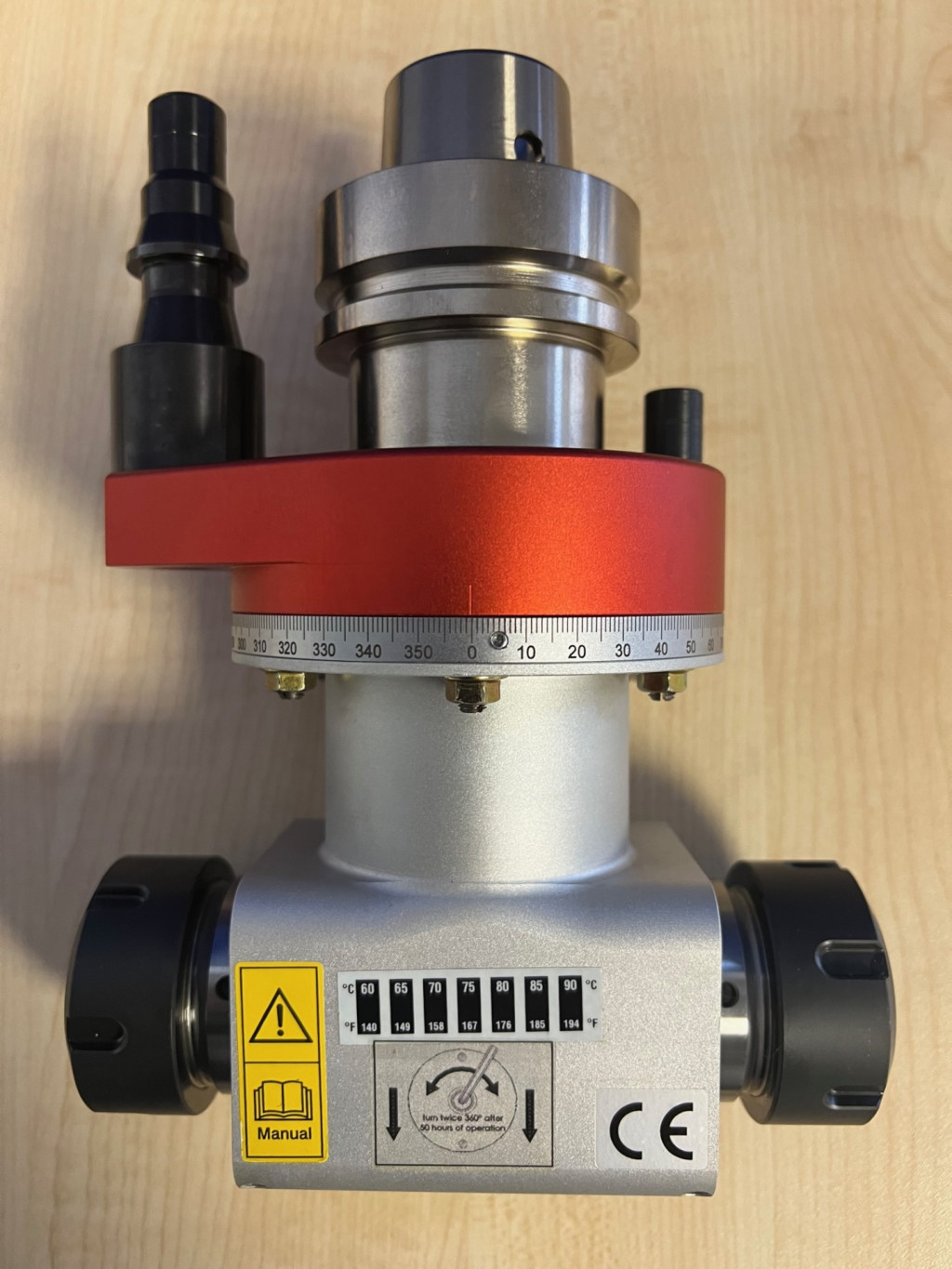

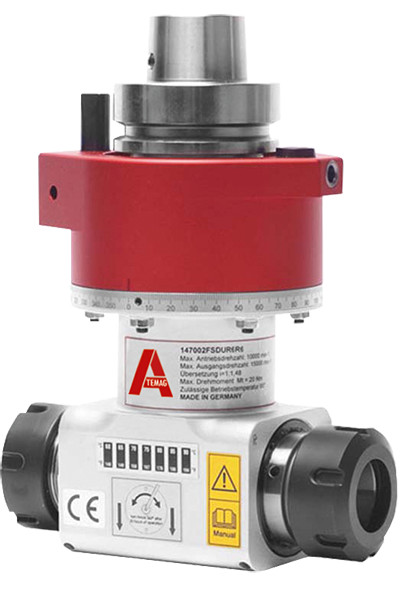

AS NEW - ATEMAG DUO Function Line Aggregate Head

Product Features

AS NEW - Never been used.

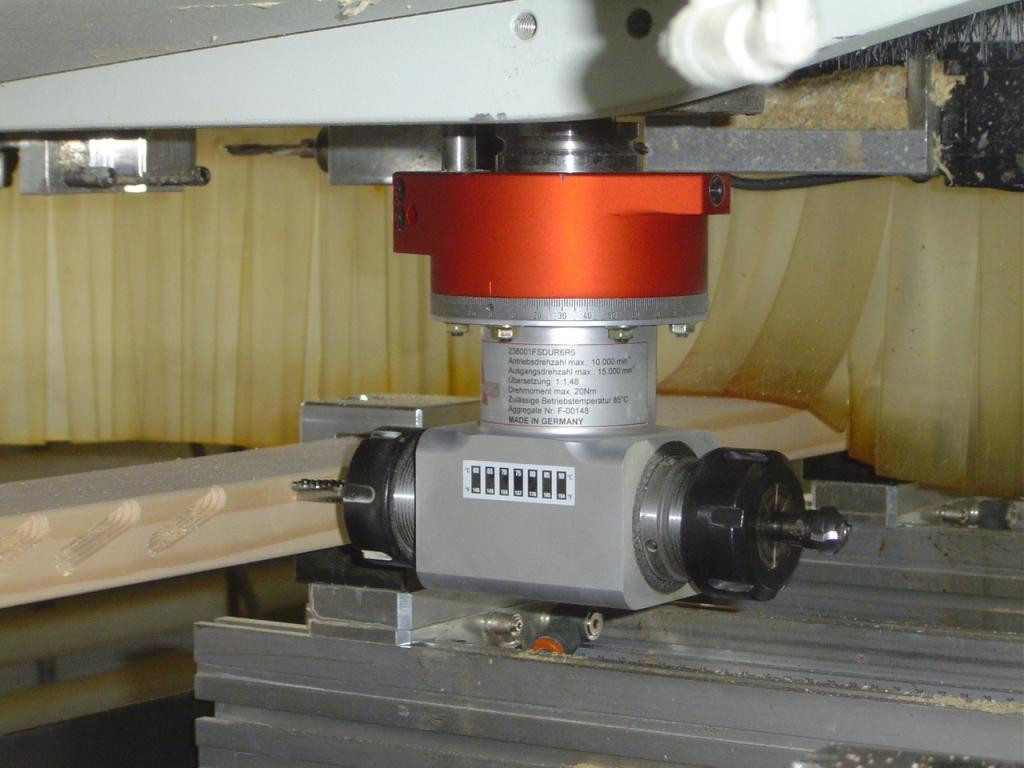

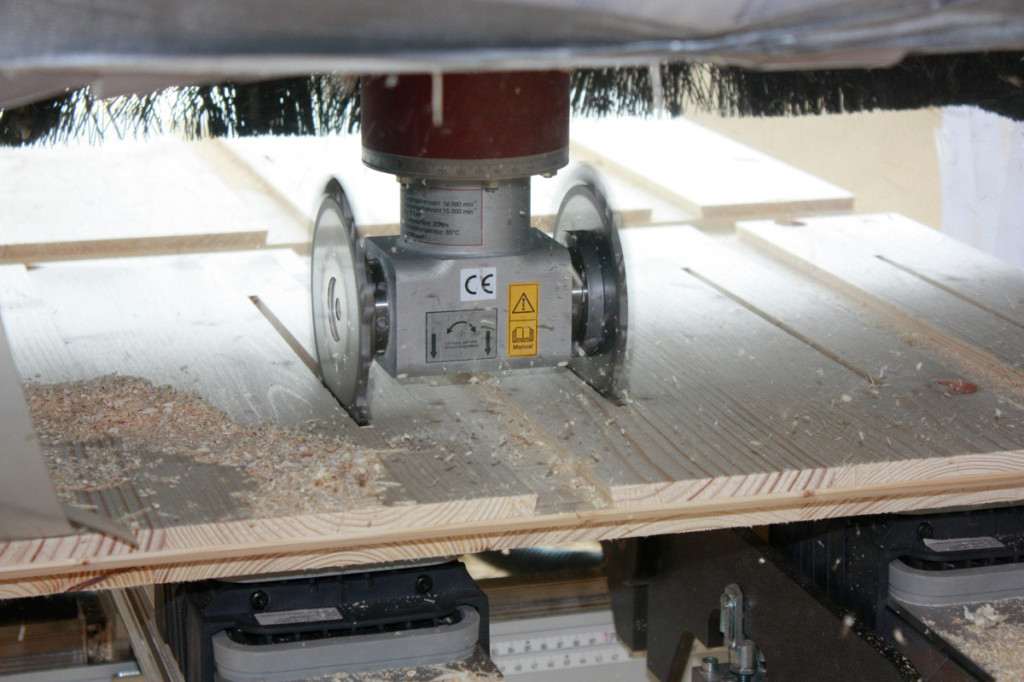

Capable of Drilling, routing, grinding, and light-duty sawing

Max. input speed: 10.000 min-1
with Rota Lube: max. 12.100 rpm
Max. output speed: 15.000 min-1
with Rota Lube: max. 18.000 rpm
Gear ratio: 1 : 1,48
Max. torque: 20 Nm
Permissible operating temperature: max. 85°C
Positioning of torque arm with respect to tool: 360°
Machining angle: 90°
Number of tool outputs: 2 / fix
Lubrication: Grease / Rota Lube – Lifetime lubrication

Complete with 1 x HSK
To Suit ER32 Collet
1 Pin to run on SCM type Record CNC - Pin is interchangeable so can be used on other make model CNC machines

For further information

Call us on 0116 2861617 or email [email protected]
