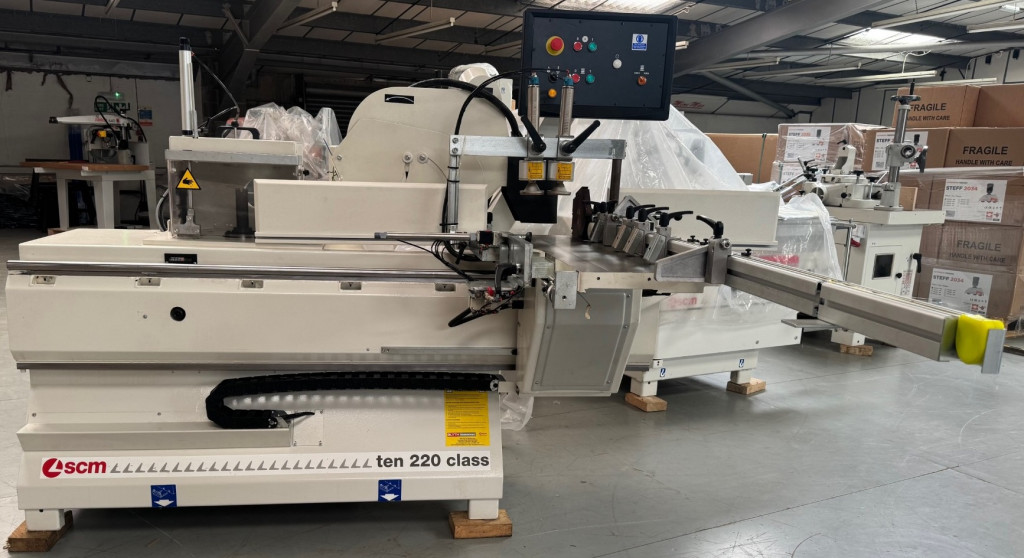

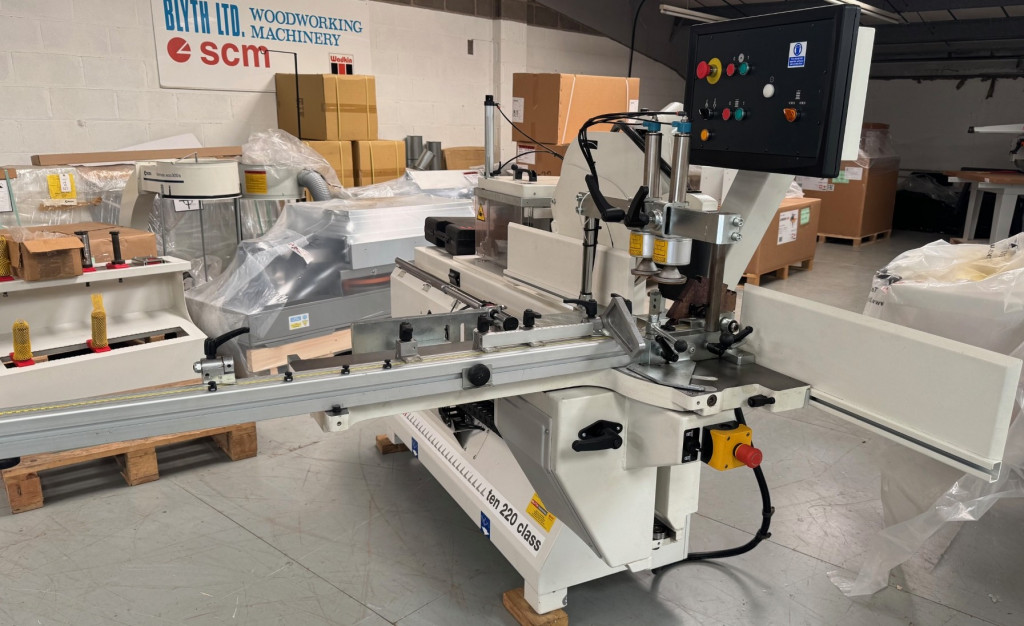

SCM SOLD - Used TEN220 Class Tenoning System - Tools Not Included
Product Features
YEAR 2007 with 5 x ISO40 40mm diameter x 140mm long shafts
Technical specification.
Tool Holder Shaft
- spindle base pos. in reference to the table - 20mm
- vertical shaft stroke 20mm
- max tool diameter 350mm
- tool rotating speed 3600mm
- exhaust outlet 120mm
- motor power 10HP

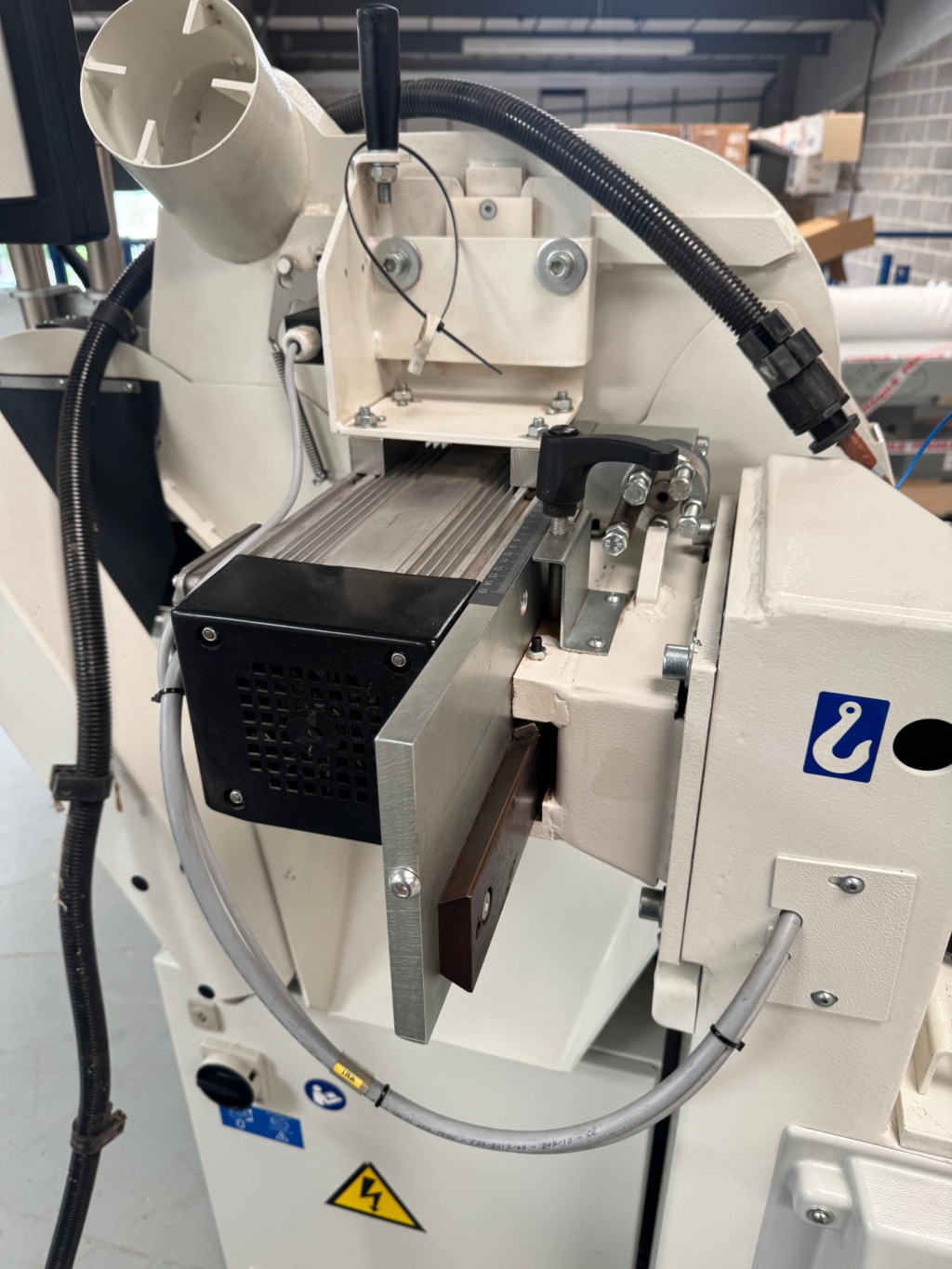

Circular Saw Unit
- max blade diameter 400mm
- max cutting height 120mm
- longitudinal unit stroke 120mm
- rotating speed 3000 rpm
- exhaust outlet diam 120mm
- motor power 4Hp

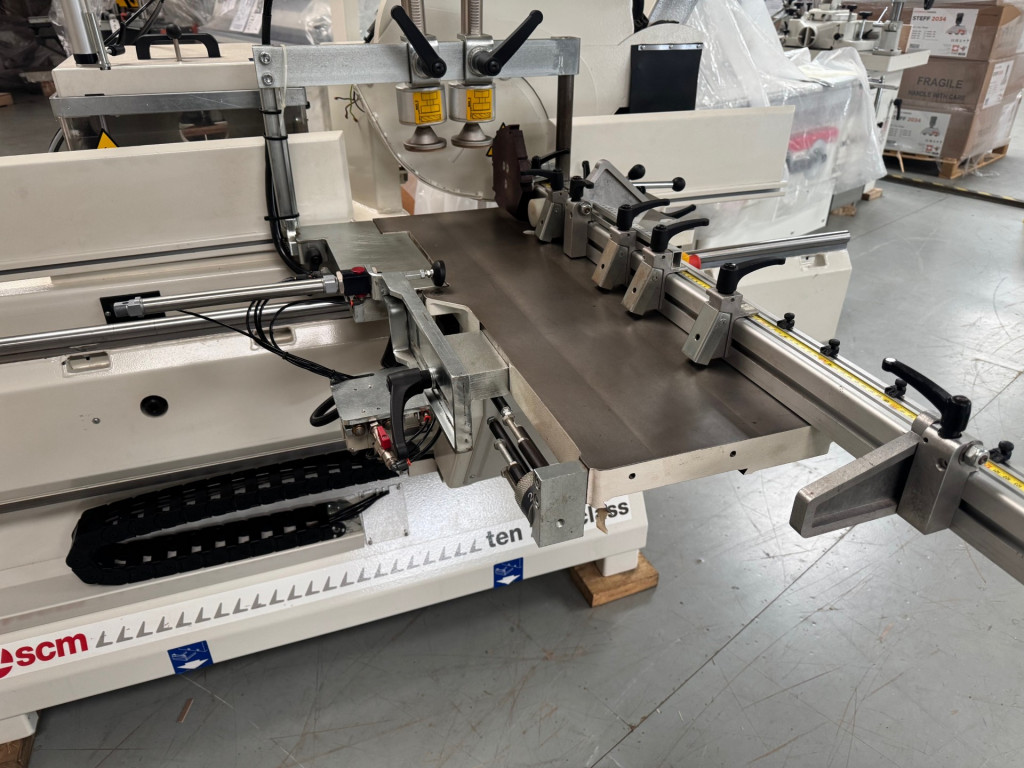

Workpeice Support Table
- tilting fence with stops on the table +/-45deg
- extensible stop on the fence up to 2800mm
- worktable stroke toward tool 105mm

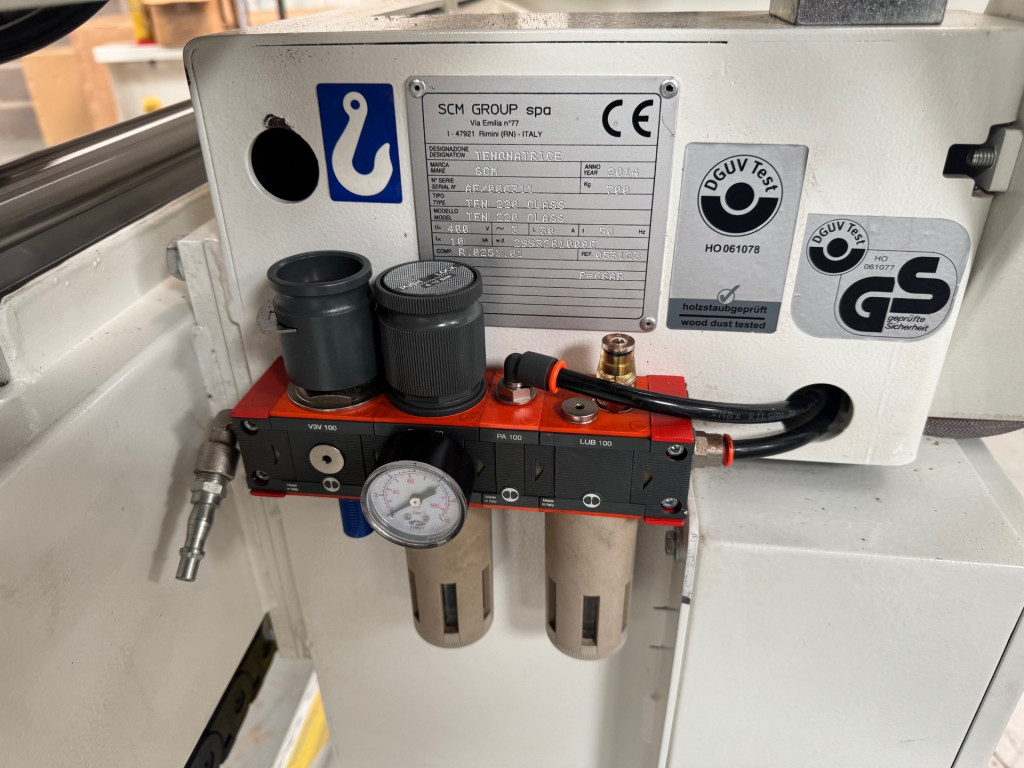

- compressed air 6 bar
Includes 4 x Mechanical Stops
VERY GOOD CONDITION
TOOLS NOT INCLUDED
For further information
Call us on 0116 2861617 or email [email protected]
