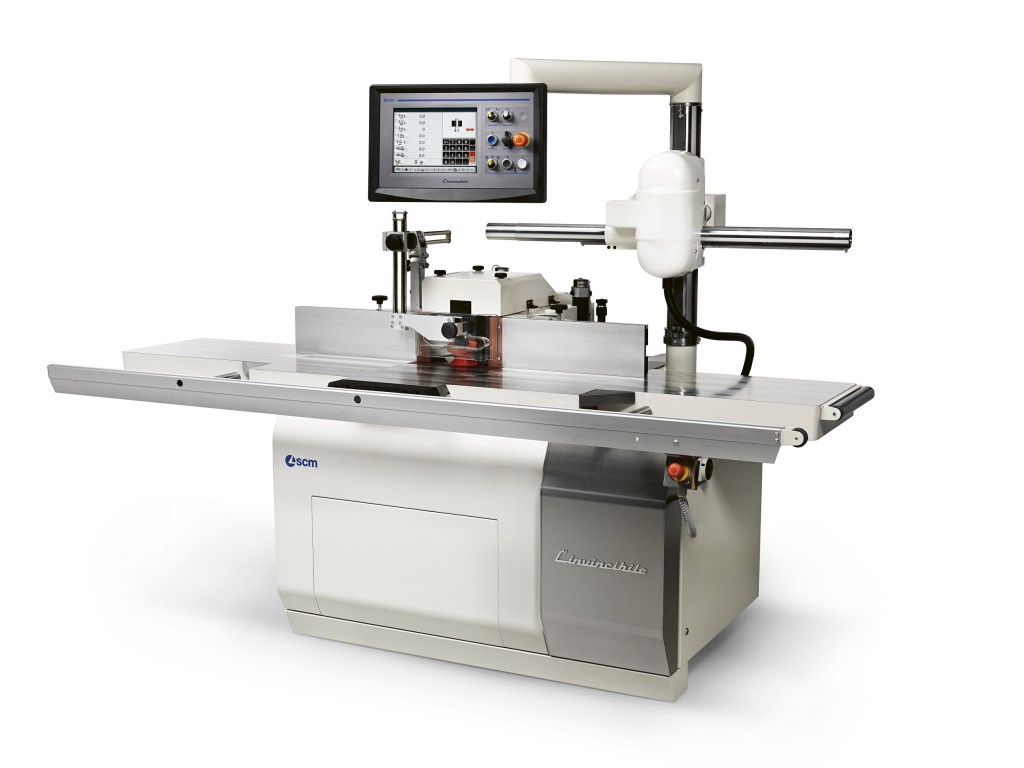

SCM SCM L'invincibile Ti5 Tilting Spindle Moulder with Electronic Control

Product Features

RANGE TOPPING HEAVY DUTY TILTING SPINDLE WITH ELECTRONIC CONTROL

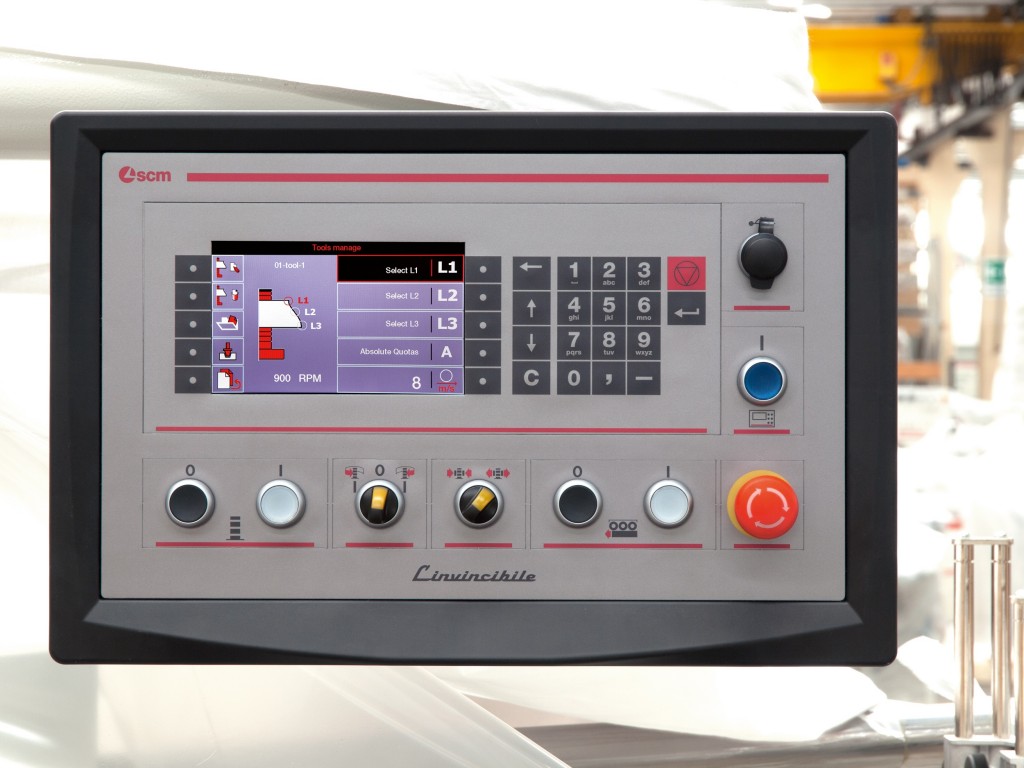

"Easy Touch " electronic control
Mobile control panel

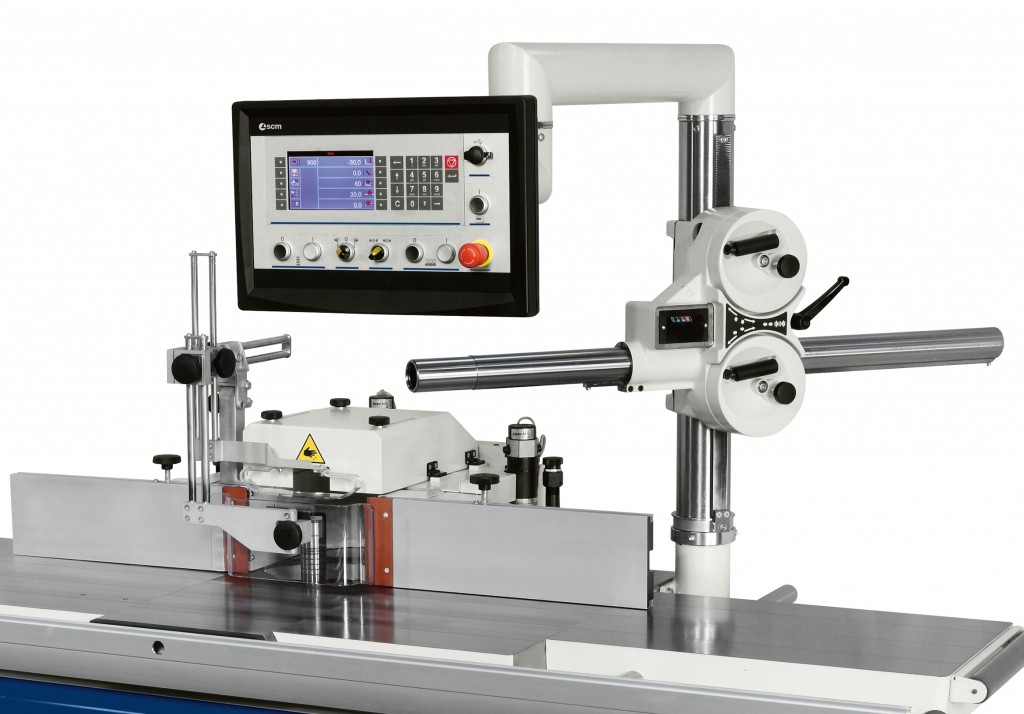

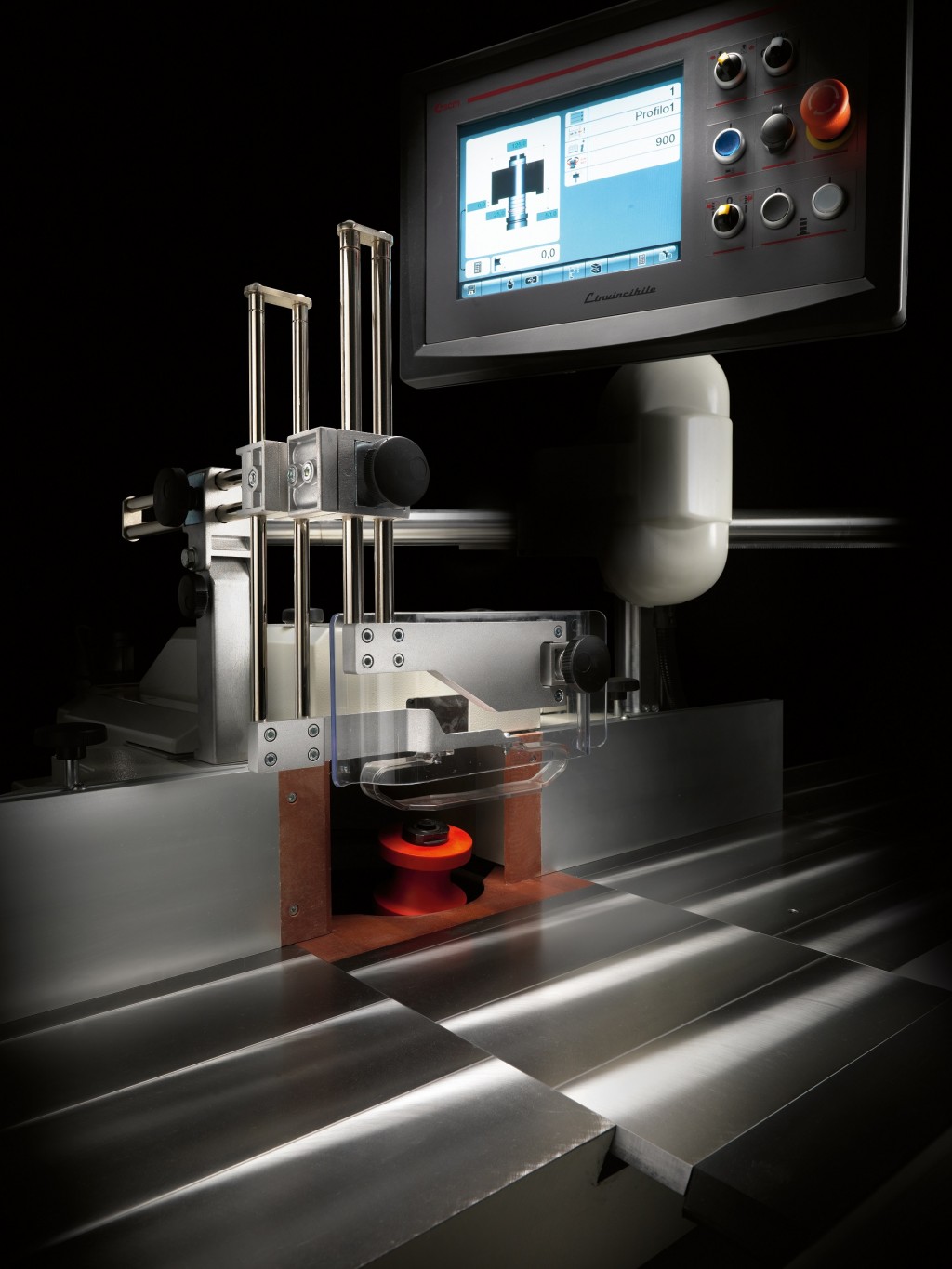

"Flex" spindle moulder fence with automatic programming

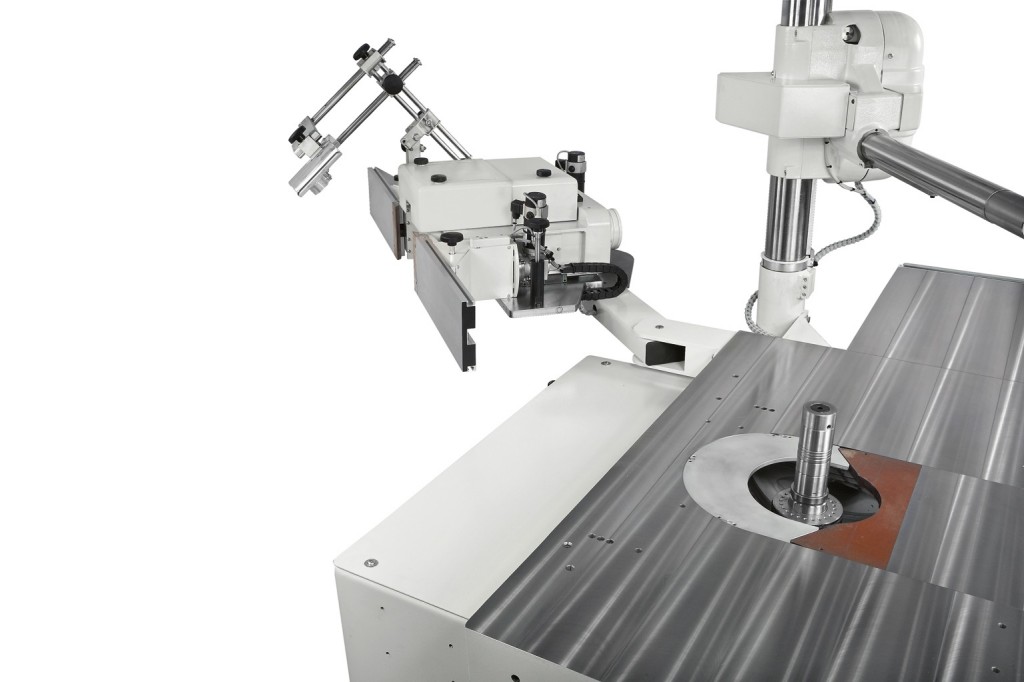

Spindle moulder fence with aluminium tables
"Fast" sectional table with manual movement
Inverter for speed change from 900 to 12.000 rpm
Electrospindle, 7,5kW motor power

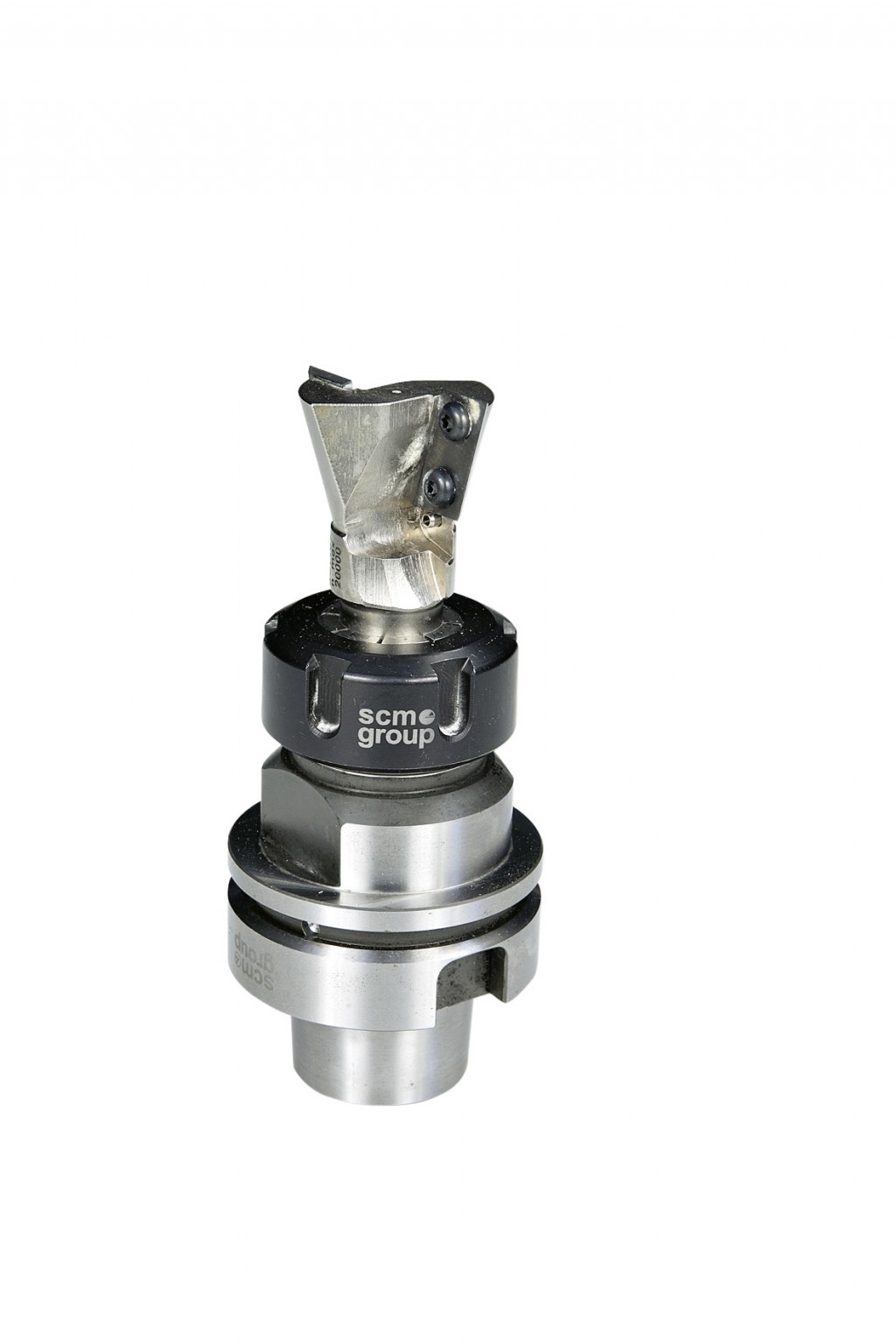

HSK Shaft System
LL Version Profile Table Extensions
Tool Rack with Tool Holders

Technical data
Work table dimensions mm 1200 x 750 1200 x 780 1200 x 730
Spindle tilting degrees ±45,50° ±45,50° -
Spindle speed rpm 900÷12.000
Spindle moulder fence stroke mm 250 (from -125 to +125) 250

TOP QUALITY FINISH OF THE
PROCESSED WORKPIECE.
Total absence of vibration and absolute machine
rigidity when machining due to a perfectly balanced
electrospindle structure and the use of the highest
quality materials and components.
Electrospindle controlled by an inverter for speed
changes electronically from 900 to 12.000 rpm with
maximum available motor power from 3.400 rpm.

ELECTROSPINDLE:
PRECISION AND RELIABILITY IN AN
UNBEATABLE TIMESCALE.
The exclusive drive unit consists of an electrospindle
specifically designed for all possible spindle
moulder applications. The electrospindle’s direct
drive eliminates maintenance procedures common
with conventional belt driven systems. Optimal
machine cleaning and a healthy environment due
to an efficient exhaust system with side outlets.
