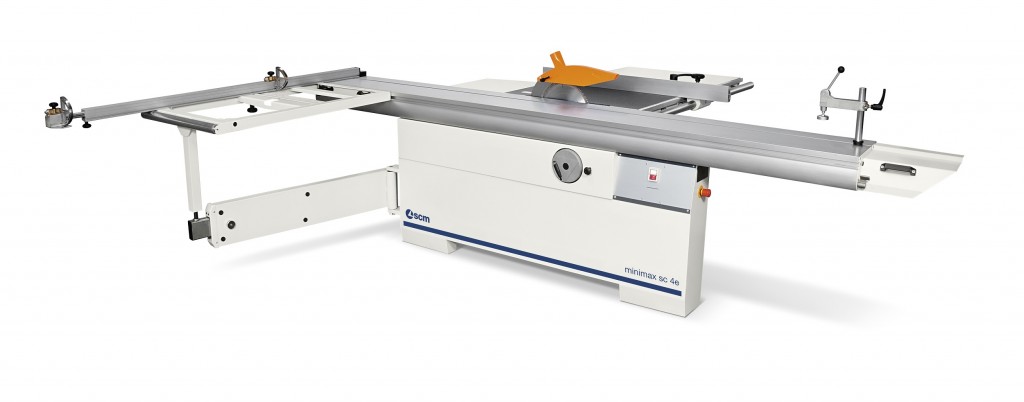

Minimax SPECIAL OFFER - SC4 e 2600mm Sliding Table Panel Saw with Scorer

Product Features

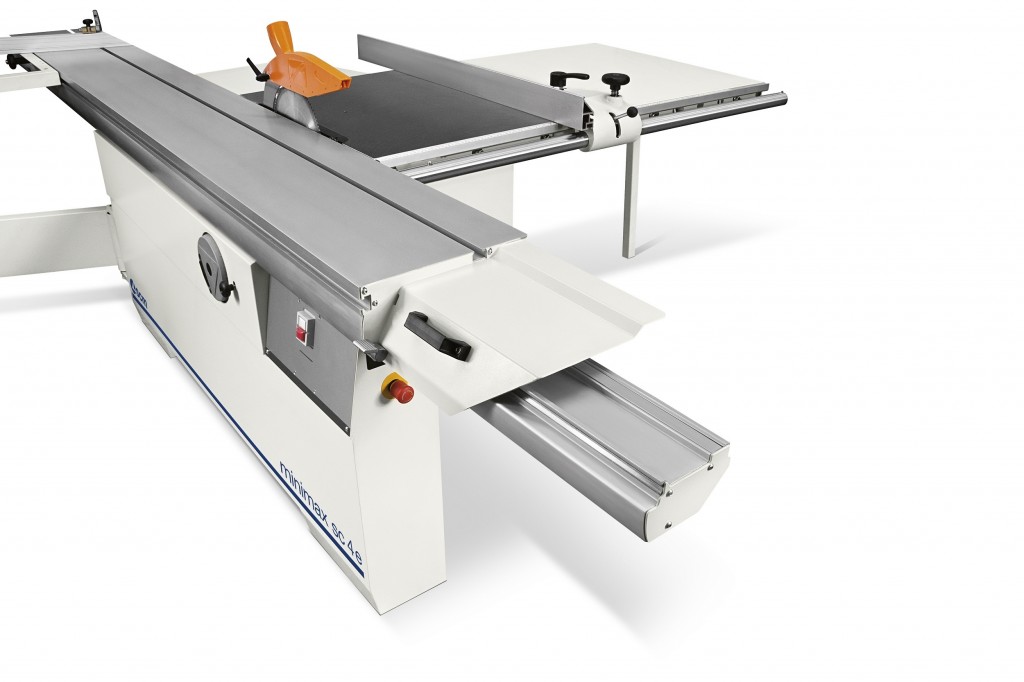

SC4 ELITE CIRCULAR SAW WITH TILTING BLADE
EQUIPPED WITH OVERHEAD GUARD

Technical features:

- cast iron table dimensions 1250 x 430 mm
- blades tilting 90° ÷ 45°
- max. saw blade diameter with scoring blade
installed 315 mm

- max. saw blade projection from table at 90°/45° 100/70mm

- squaring stroke 2600mm

- cutting width on parallel fence 1270mm
- three-phase motor 7 Kw Self Braking Motor
- exhaust outlet diameter 120mm

Standard equipment:

- readout of saw unit tilting on the machine front side by means of a mechanical digital readout
- anodized aluminium sliding table (dimensions 290 x 142 x 2660mm) sliding on high precision hardened steel guideways

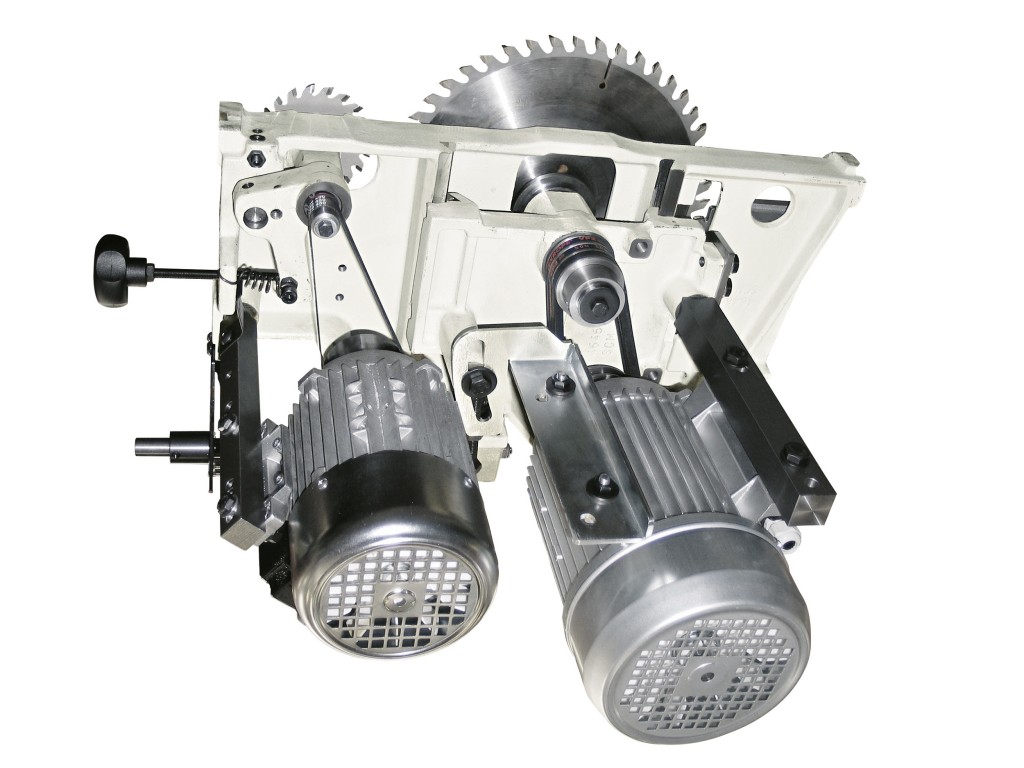

- cast iron saw unit with lifting system by means of "dove-tail" guideways and tilting on side trunnions

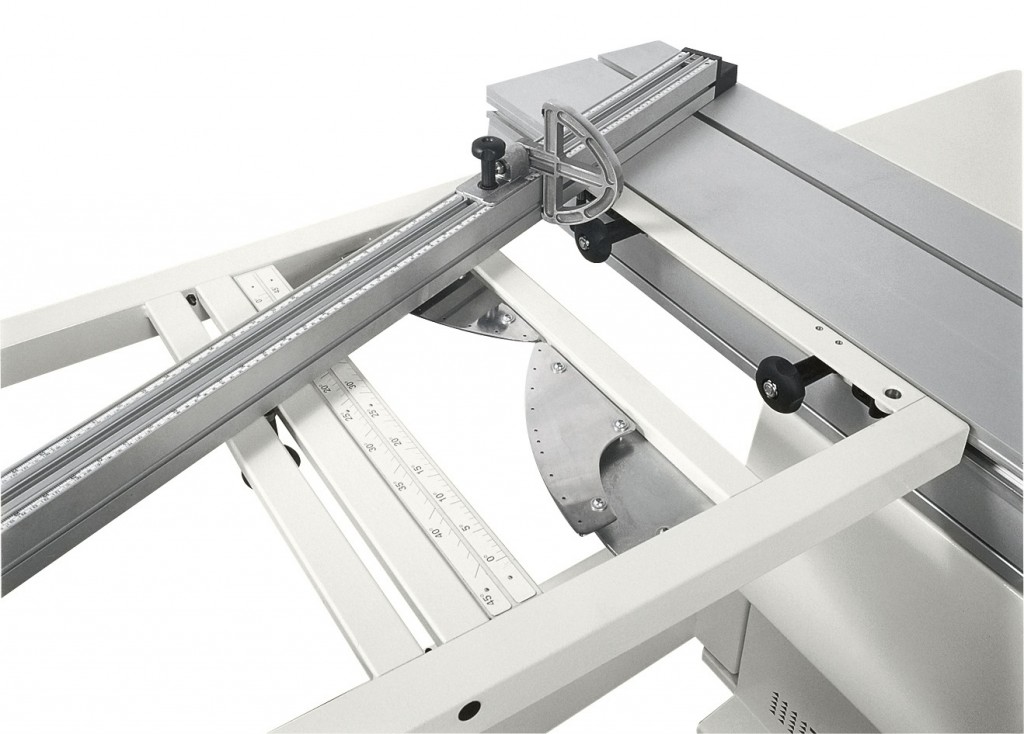

- squaring frame (dimensions 1200 x 650 mm) complete with:
. telescopic fence with 2 flip-over stops and eccentric clamp
. telescopic support
. idle roller to facilitate the panel loading/unloading
- dedicated saw parallel fence (length 1200 mm), with micrometric adjustment and cam-locking, complete with support

Complete with

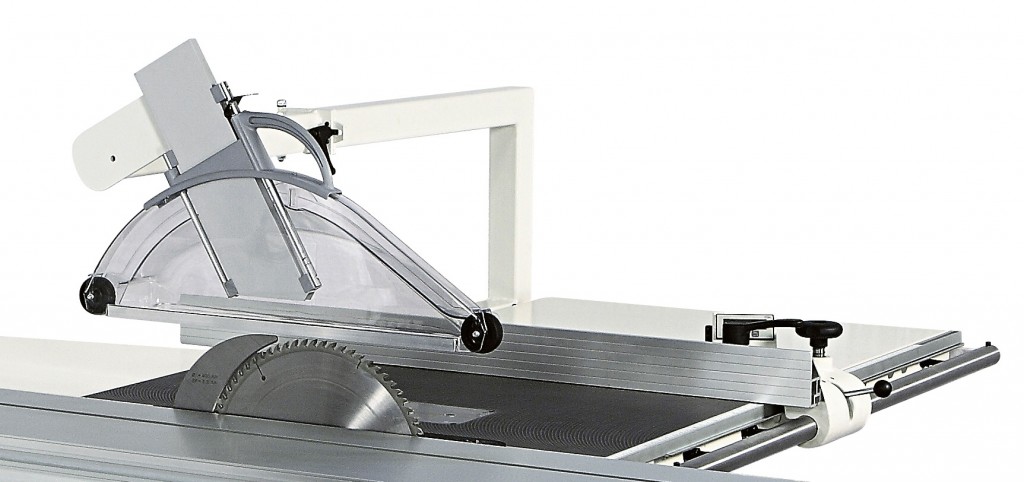

Overhead Guard
Belt driven scoring unit with external setting up and complete with blade diameter 100 mm Z 20
Numerical readout to tilting
Cutting width with parallel fence 1270 mm

Round sliding bar on parallel fence complete with:
- rectified steel round sliding bar, 45 mm diameter
- micrometric adjustment and cam-locking system
- "high rigidity" cast-iron fence supports

Includes Main Sawblade
