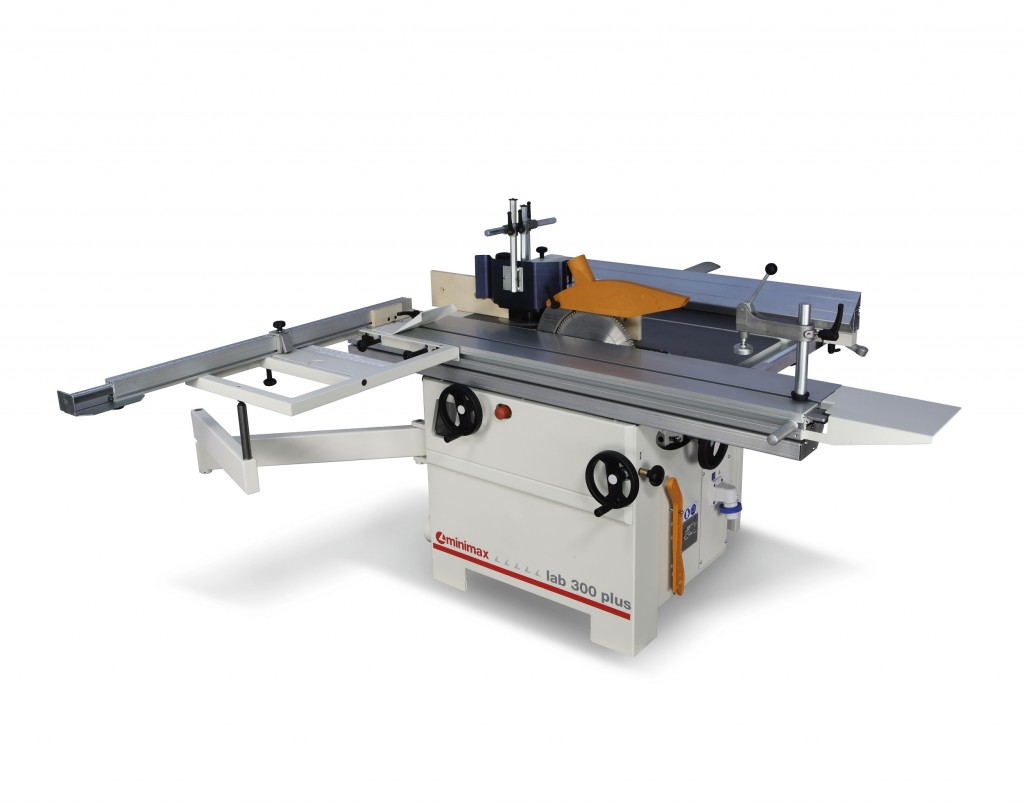

Minimax New LAB300 PLUS Universal Woodworker - 240v

Product Features

Combination Planer, Saw & Spindle Moulder with 5.5Hp motors

Useful working width to the planer 300 mm
Surfacing tables total length 1300 mm
Cutter block diameter 72 mm
No.knives 3
Min/max. working height on thicknesser: 3 + 220 mm

Saw blade tilting: 90° ÷ 45°
Max. saw blade projection from table at 90°: 100 mm
Squaring stroke 1660 mm
Cutting width on parallel fence 800mm

Max useful spindle length 100mm
Spindle moulder speeds: 3500/7000/10000 RPM
Max tool diam when profiling 210mm

With

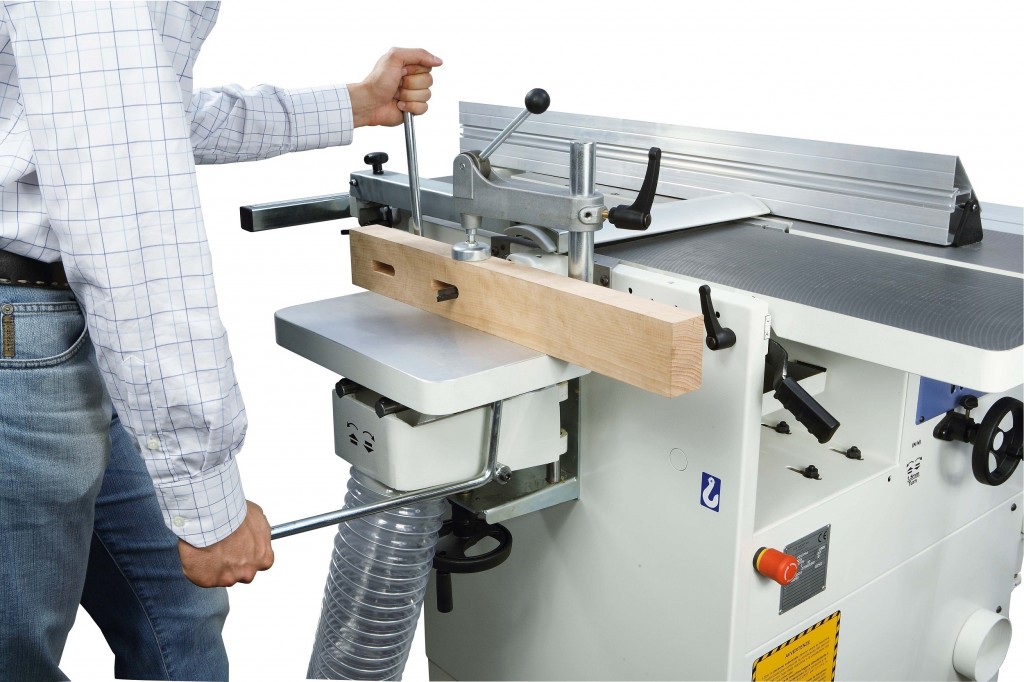

Mortiser Attachment
Self Centring Chuck
Belt Driven Scorer
Proffesional Fences
240v Motors
Wheels for moving machine.
