Minimax T124 Wood Turning Lathe with Copy Device

Enquire Today

was £POA

£POA + VAT Out of Stock

Product Features

Technical specification :

- distance between centres 1150mm
- centres height 200mm
- three phase motor 1.5hp
- four chuck speeds 570 / 1000 / 1850 / 2500 rpm
- face plate diam 130mm

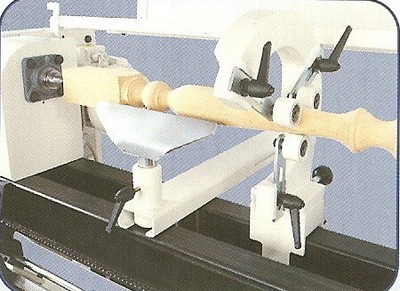

Machine equiiped with copying device :
- max working length 1120 mm
- max diameter 200mm

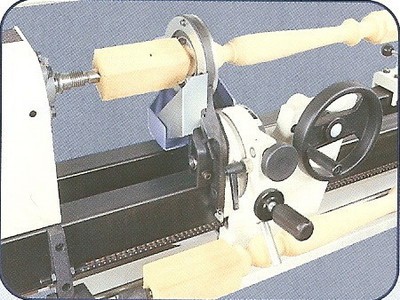

and equipped with mobile rest :
- max working length 1070 mm
- max diameter 80 mm

Standard Machine Includes

Floor stand and tool tray, full Ce safety equipment, mobile rest with pre-cutting tool , max diam.80mm

Optional equipment includes

Fixed rest complete with support
4 jaw lathe chuck diam 120mm
Flange for self centering chuck
Revolving tail centre
Face plate diameter 300mm with holes
Disc sander diam 300mm
Cup chuck & screw chuck

Technical specification

  • Full range of options available to customize machine
  • Transparent guard for total operatore safety
  • Four speeds
  • Copying length 1100mm
  • Copier ideal for small batches
  • Strong base ensures maximum reliability and top precision turing

For further information

Call us on 0116 2861617 or email [email protected]
