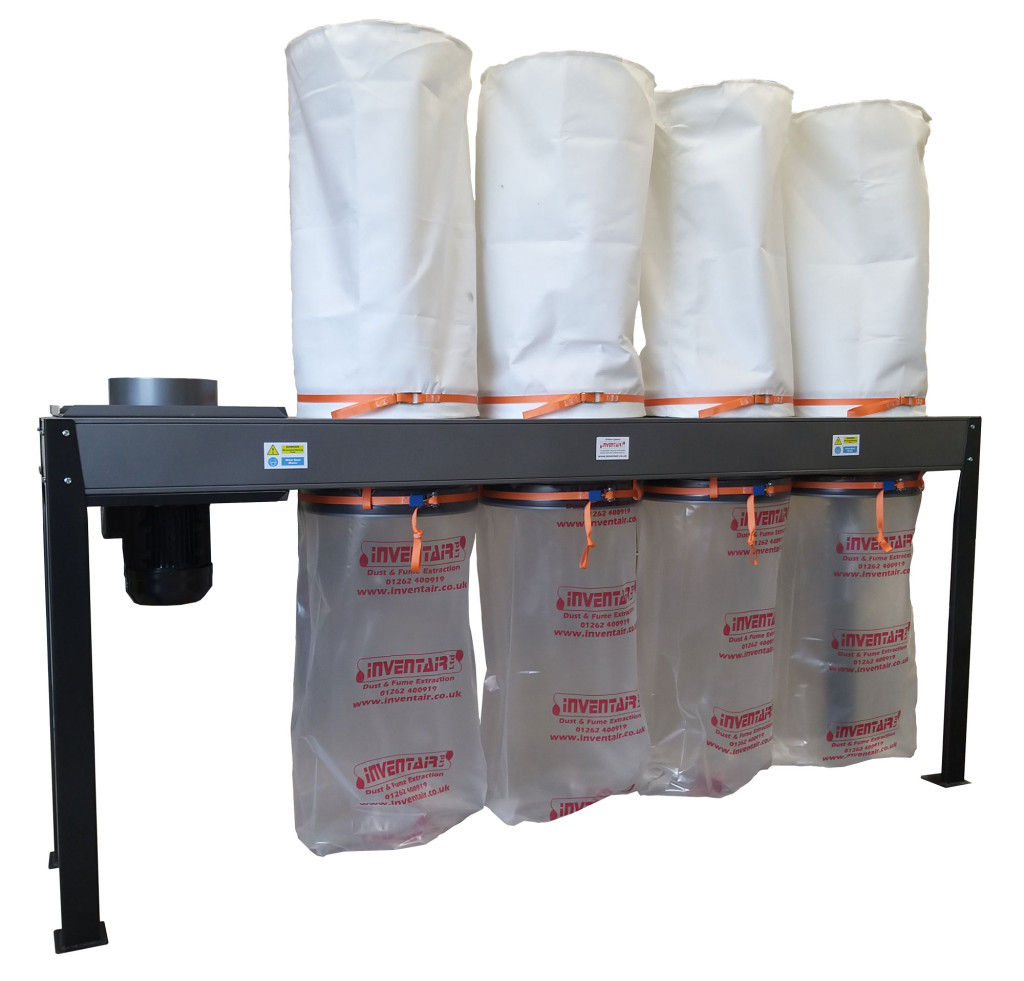

INVENTAIR MK4 4 Bag 10HP Standard Filter Extraction Unit

Use the form below or call us on 0116 2861617

Your title

Your name *

Company

Telephone *

Email *

Your Enquiry *

Submit Enquiry

Product Features

The process could not be simpler for the collection of chipboard and MDF sawdust to wood chippings.

All these units are fitted with powerful, self-cleaning fans to transport the waste material through a ductwork system into the unit for separation.

On entering the unit the bulk waste spins into polythene bags and the finer dust is filtered through Highglaze Terylene Needlefelt media to allow the air to return to the working area without heat loss.

Each unit is fitted with Inventair special swirl baffles which maximises even bag fill evenly with waste.
The units are supplied with their own D.O.L starter and spare polythene bags.

Width 725mm

Length 3440mm

Motor 7.5kw

3500 cfm

Volume M³/H 5947

Pressure MM 230

Filter Area M² 10

Bag capacity M³ 1.4

Weight 325kg

Inlet Size 315 Ø

For further information

Call us on 0116 2861617 or email [email protected]
