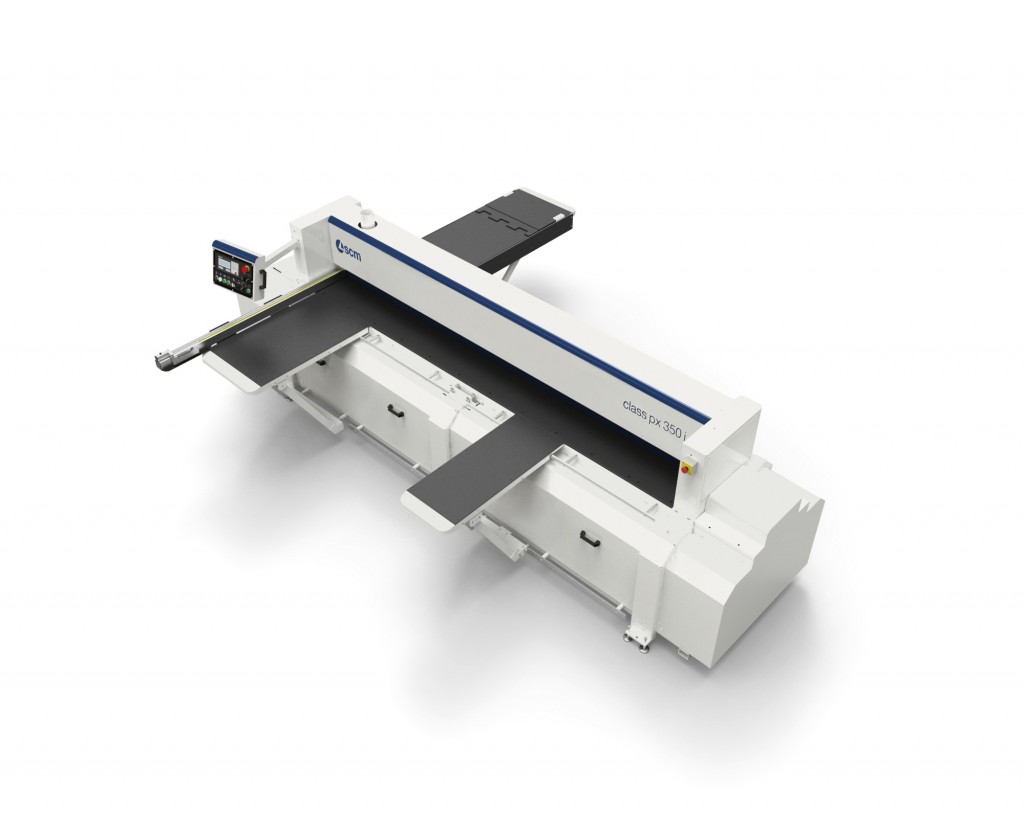

SCM NEW SCM CLASS PX 350i Panel Saw with Mobile Carriage

Product Features

Circular saw with mobile carriage and tiltable blade up to 46° to operate in safety with working space reduced up to 50% compared to a traditional circular saw.

maximum squaring stroke 3200mm (Optional 3800mm)
blade tilting mm 0÷46°
maximum saw blade diameter (cutting) 350mm
maximum saw blade diameter (engraving + cutting) 300mm
max. saw blade projection (D350) from table at 90°/45° mm 105/72
max. saw blade projection (D300) from table at 90°/45° mm 80/50
blade rotation speed giri/min 4000
cutting width on rear fence mm 1300

Other technical features
three-phase motor 5,5 kW 50 Hz (5,5 kW 60 Hz)
exhaust hoods diameter mm 120 (1) - 100 (2)

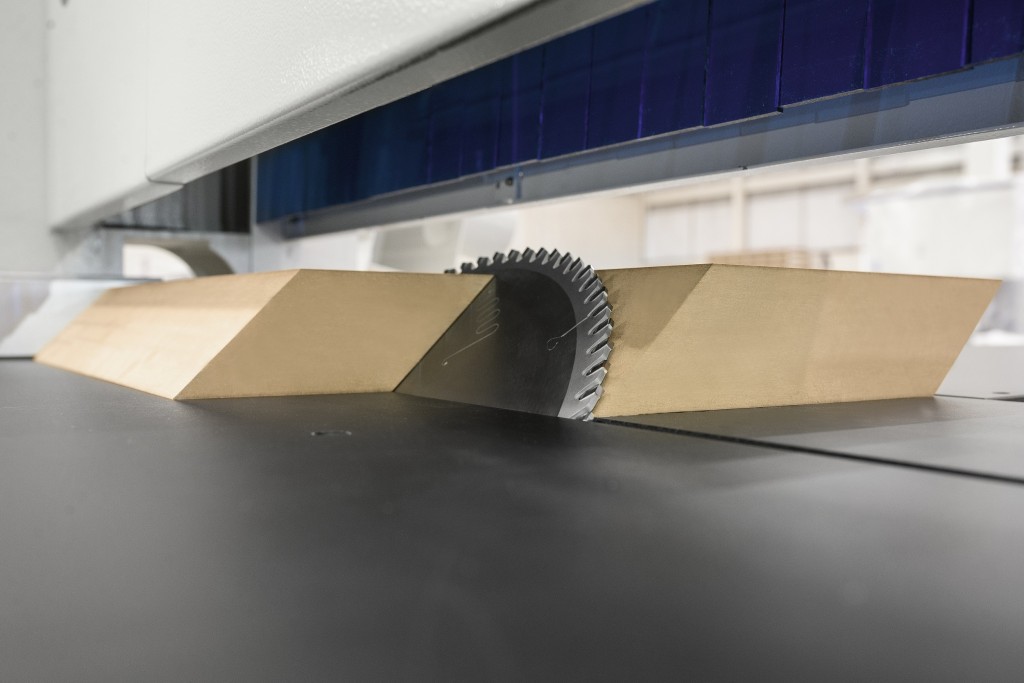

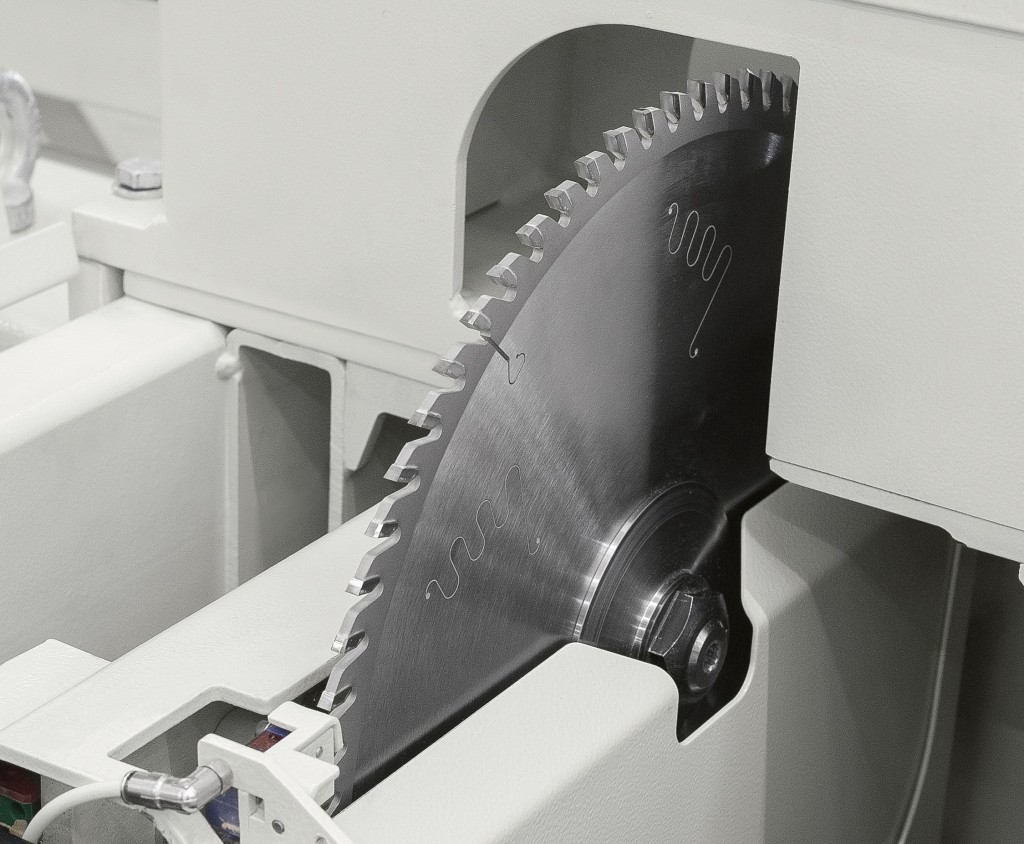

Optimal finish with the new saw unit with rigid structure which allows, with maximum ease, a perfect
cut of veneered or solid wood panels, both at 90° and tilted up to 46°.

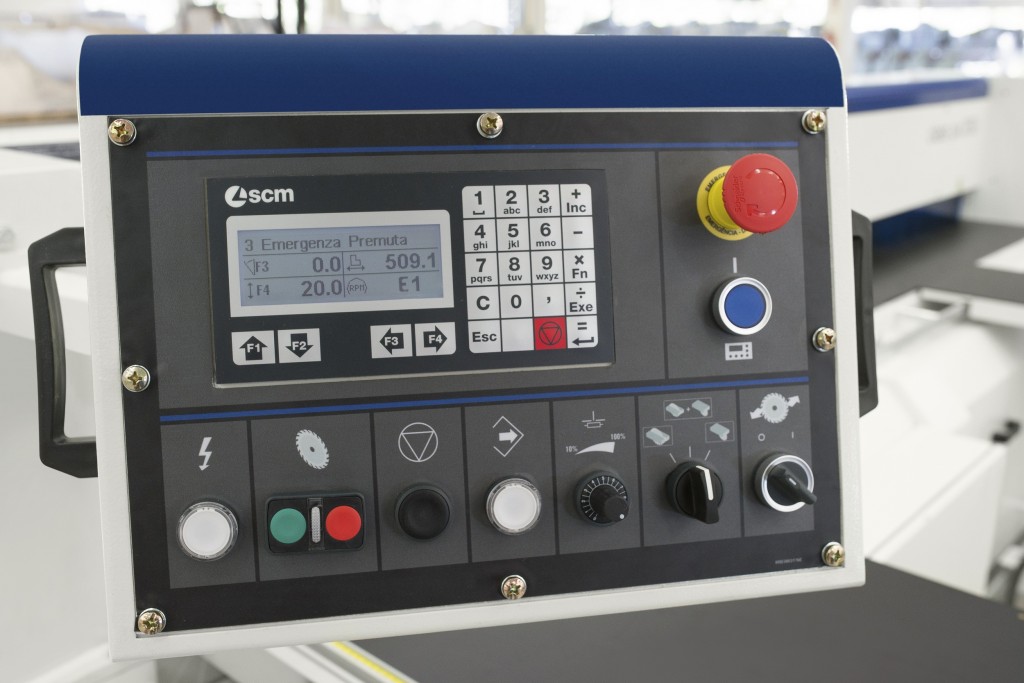

Simple and rapid programmed movement with the “Ready” mobile control panel.

Immediate positioning thanks to the double powered and programmed rear
stop that ensures a quick and precise work piece positioning.

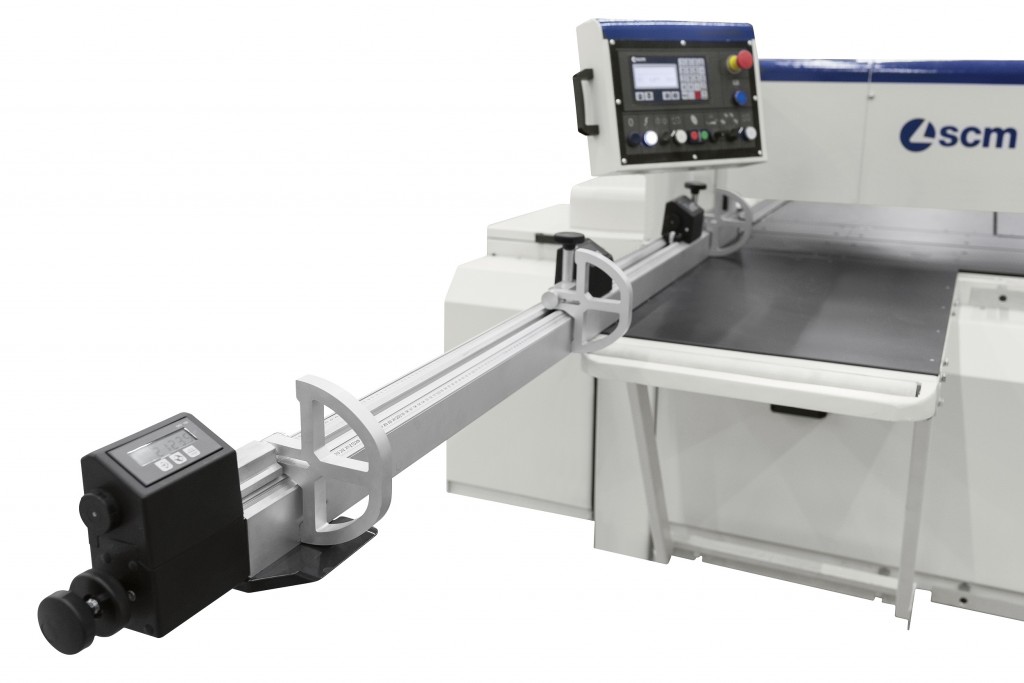

Sturdy and reliable telescopic squaring fence with the tilted metric scale towards the operator and the 2 reversible stop:
panels squaring up to 2500x3000 mm (3200x3200 mm as an option).

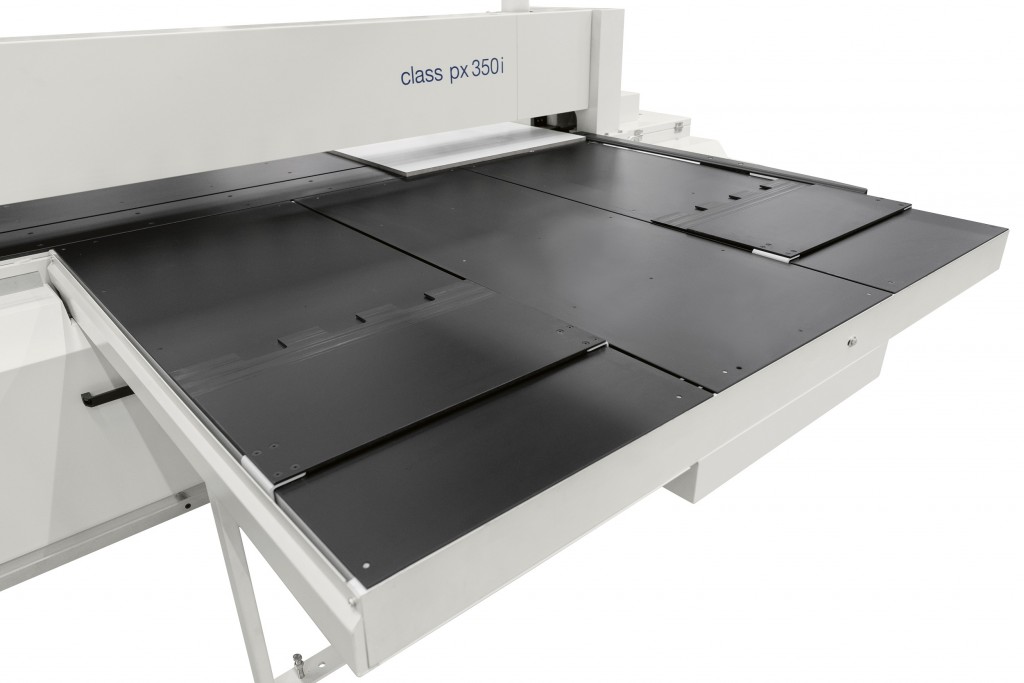

The fixed table of large dimensions guarantees a stabile panel support when machined.
