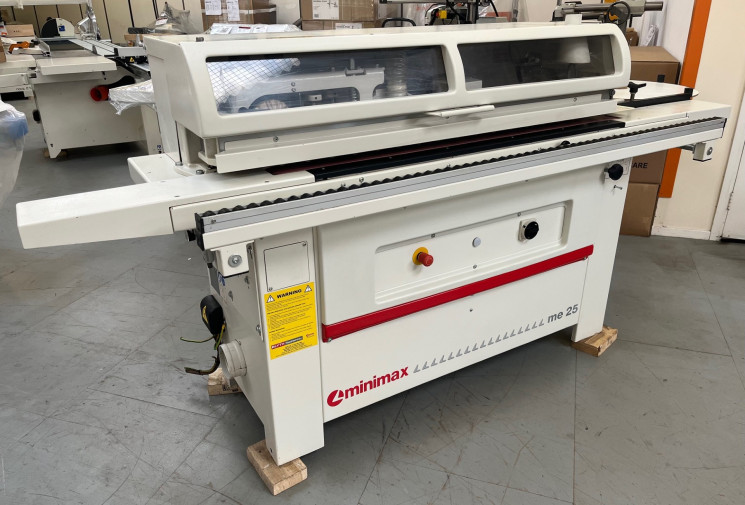

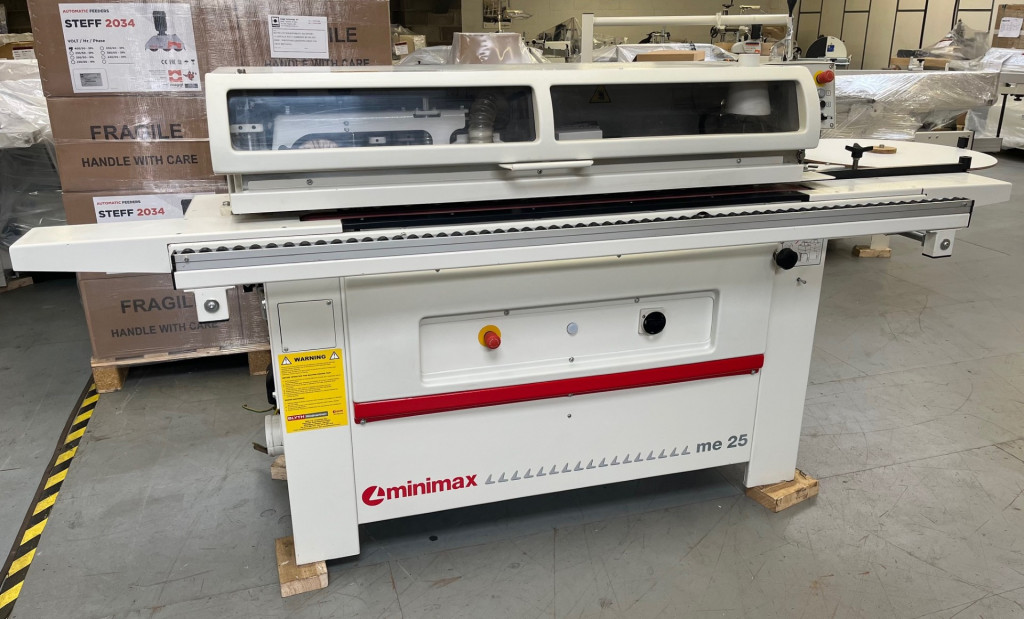

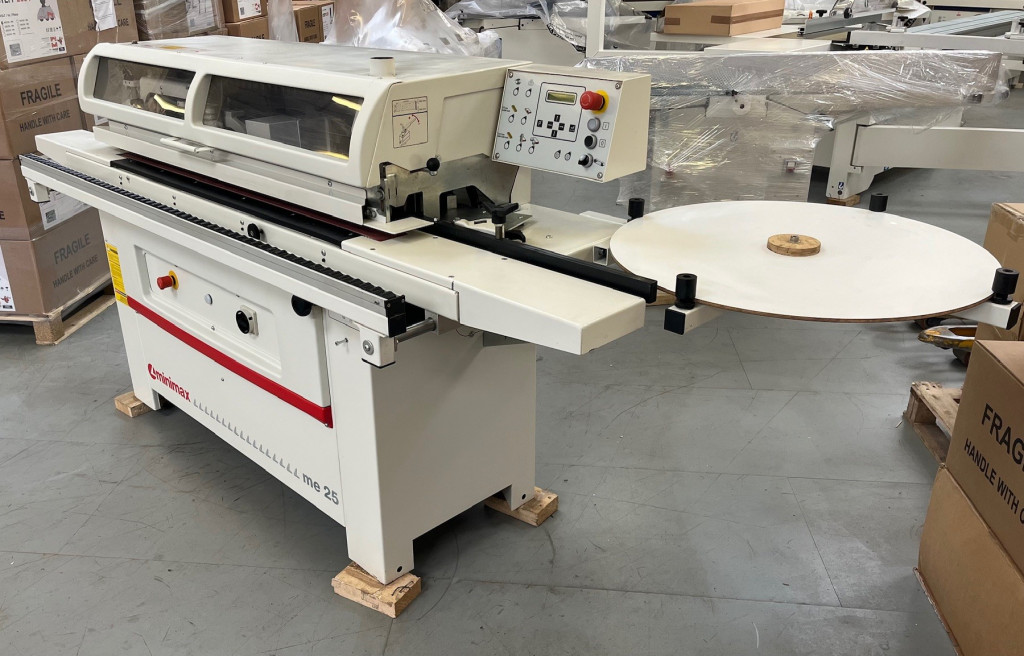

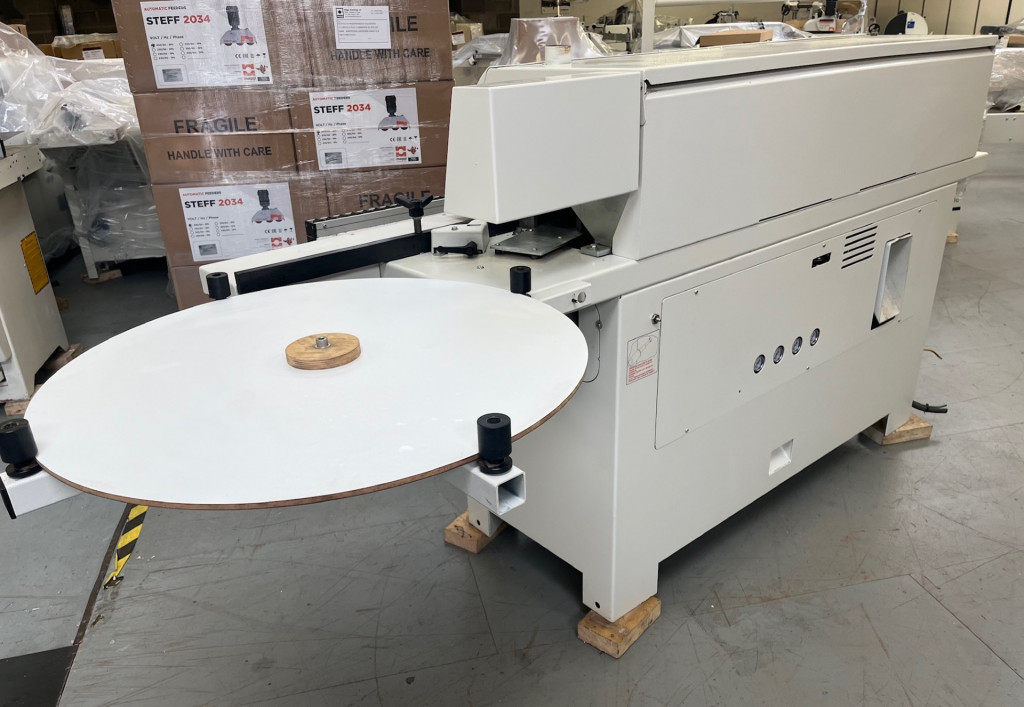

Minimax COMING SOON - Used ME25 Automatic Edge Bander with Glue Pot

Product Features

YEAR 2016 Ce Specification

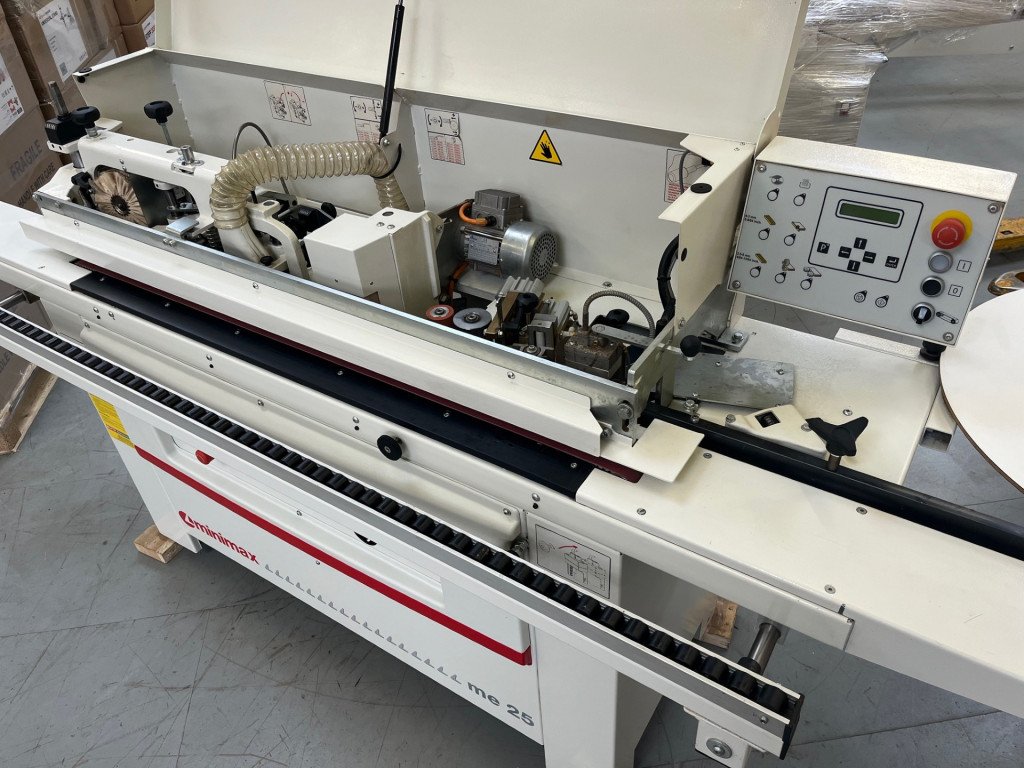

Glue Pot
End Cutting Saw Unit

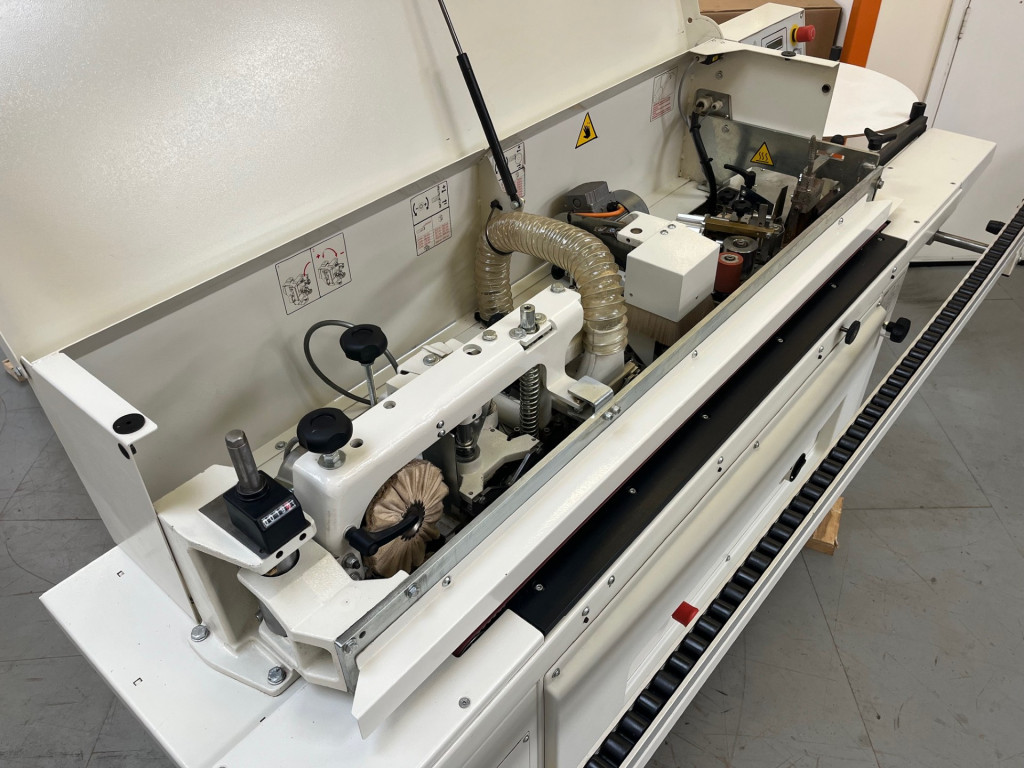

Top and Bottom Trimming Unit
Edge Scraping Unit
Brushing Unit

Technical features

- worktable dimensions [mm] 2600 x 530
- worktable height [mm] 904
- thickness of rolled edges [mm] 0,4 ÷ 3
- thickness of edges in strips [mm] up to 5
- min. ÷ max. panel height [mm] 12 ÷ 50
- min. ÷ max. panel height using edge scraping unit [mm] 16 ÷ 50
- min. panel length/width with rolled edges [mm] 190/65
- min. panel length cut only on the front [mm] 120
- feed speed [m/min] 7
- feed motor power (S1) [kW] 0,55
- pneumatic operating pressure [bar] 6,5
- exhaust outlet diameter [mm] 120
- operating temperature [°C] 20 ÷ 190
